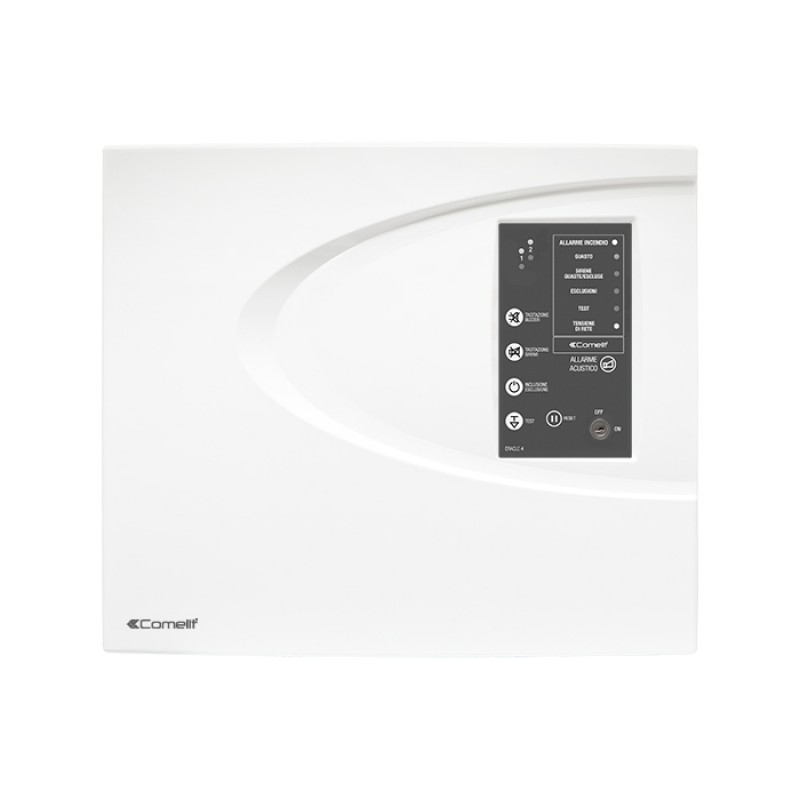

CONVENTIONAL FIRE CONTROL PANEL 8 ZONES

Product code

43CPC008EN

Guaranteed Safe Checkout

Single product layout Accessories

Description & Features

Conventional 8-zone fire control panel supporting up to 32 detectors or manual call points per zone. It has a durable plastic housing and displays all indications as required by law. Indication for each alarm, fault, siren disabled, silence mode, zones disabled, Test, Reset. Secondary power supply battery 12 VDC / 7 Ah. Approved to the EN 54-2 and EN 54-4 standards.

Technical data 43CPC008EN

  • ERACLE series panel with 8 zones, up to 32 Comelit detectors or call points per zone.
  • General LED indications for fire, fault, faulty or excluded siren, exclusion, test and mains voltage, together with alarm and fault indications per zone.
  • Front panel commands: silence buzzer, silence siren, inclusion or exclusion, test, reset and audible alarm.
  • Continuous monitoring of the detection lines with end-of-line impedance, and Walk Test function.
  • Access levels protected by a secure key, with a mechanical key for level 2.
  • Programmable detection with confirmation (dual action), programmable instantaneous zone and siren activation delay from 1 to 10 minutes.
  • Can also be managed from a panel repeater.
  • Expandable with an 8-relay module (Art. 43ECR032).
  • 1 fire relay, 1 fault relay, 2 monitored outputs of up to 0.3 A each and a siren output of 0.5 A at 24 VDC with a 0.5 A PTC fuse.
  • Mains absorption 50 mA, maximum absorption of connected devices with a charged battery 0.7 A.
  • Zone thresholds: normal mode 2–10 mA, alarm 10–110 mA, short circuit above 110 mA, fault or open circuit 0–2 mA.
  • Plastic housing, weight without battery 2,400 g.
  • Operating temperature -5 to 40 °C, humidity up to 96% at 40 °C, storage temperature -20 to 60 °C.

Product code: 43CPC008EN. See also in the Conventional Fire Detection System category: CONVENTIONAL FIRE CONTROL PANEL 8-16 ZONES and CONVENTIONAL FIRE CONTROL PANEL 4 ZONES.
