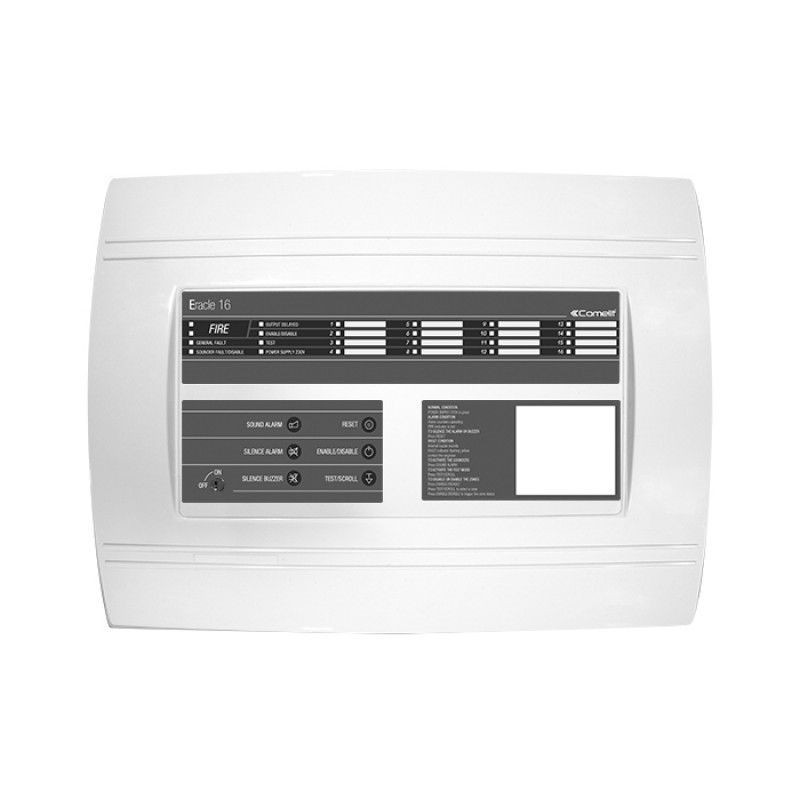

Conventional 8-zone fire control panel, expandable up to 16 zones (art. 43ECZ020), certified to EN54-2 and EN54-4. It has a robust housing and an LED display. It shows fire alarm and fault for each zone, as well as general information such as alarm, fault, siren disabled, zones disabled, test and power supply. The available commands are test, siren silencing and reset. Another panel can be connected as a SLAVE to the MASTER, acting as a repeater, at a maximum distance of up to 1 km.
Technical data 43CPC016EN
- Series: Eracle 8-16, conventional fire detection panel
- Zones: 8 as standard, expandable up to 16 with the 4-zone card 43ECZ020
- Commands: test, sounder silence, reset and walk test
- Key-protected access to the controls
- Robust plastic cabinet
- LED display with fire and fault indications per zone, plus general indications for alarm, fault, sounder disabled, zones disabled, test and power
- Certified to EN 54-2 and EN 54-4
Optional expansions 43CPC016EN
- Card with 8 relays
- Card with 4 sounder outputs
- LOG EVENT module recording up to 510 events
- Second panel acting as repeater (SLAVE) of the MASTER, carrying the indications up to 1 km away
Product code: 43CPC016EN. See also in the Conventional Fire Detection System category: CONVENTIONAL MULTI-CRITERIA DETECTOR and CONVENTIONAL FIRE CONTROL PANEL 8 ZONES.
