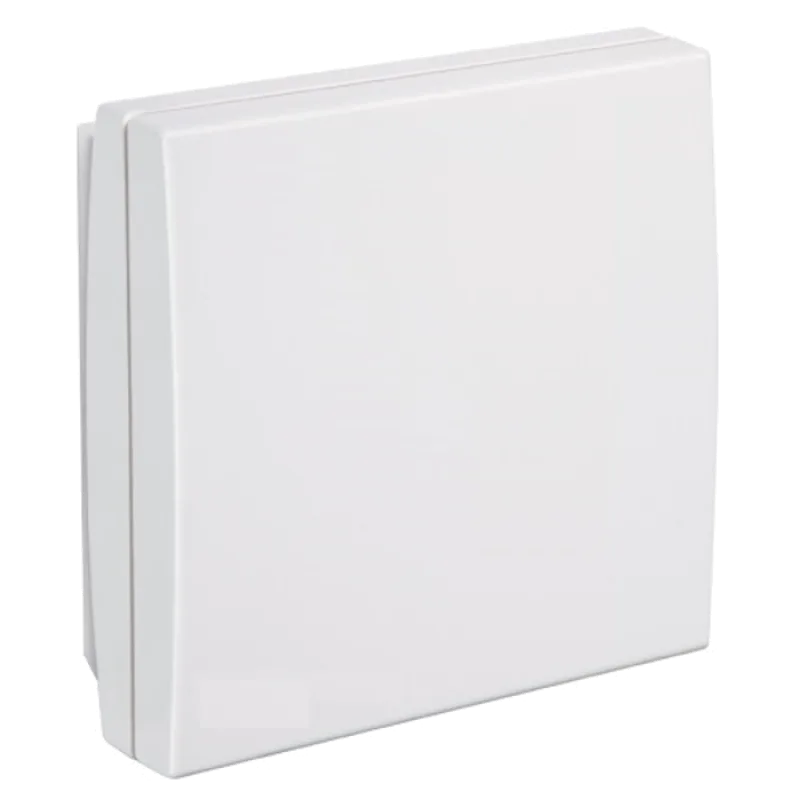

PT100 temperature sensor for surface mounting on a round or square box. Direct connection to module art. 20004140. Measuring range from -30°C to +90°C. ABS case, white colour. Dimensions (W x H x D): 85x91x27 mm.
Technical data 20004151
- Sensing element: PT100 temperature probe
- Mounting: on the wall, on a round or square box
- Measuring range: -30 °C to +90 °C
- Case: ABS, white
- Dimensions (W × H × D): 85 × 91 × 27 mm
Compatibility 20004151
- Direct connection to the PT100 input of the 20004140 flush-mounted temperature and humidity module
Compatible products 20004151
The 20004151 is a wall-mounted PT100 probe in a white ABS case, intended for the PT100 input of the SimpleHome module 20004140. The module ships with the Comelit temperature and humidity sensor, not with a PT100 sensor. The wall probe fills that input when mounted on a round or square box.
Difference between 20004151 and 20004154
Code 20004154 is recessed into a false ceiling or plasterboard through a 26 mm hole. The wall model is fixed on a box instead. The connection head of the 20004154 is white aluminium, with a 30 mm cover diameter and a length of 25 mm. Its measuring range starts at -20 °C, against -30 °C for the wall probe, with a common upper limit of +90 °C.
Product code: 20004151. See also in the Climate Management Components category: FLUSH-MOUNTED TEMPERATURE AND HUMIDITY MODULE and SIMPLEHOME/MODBUS INTERFACE.
