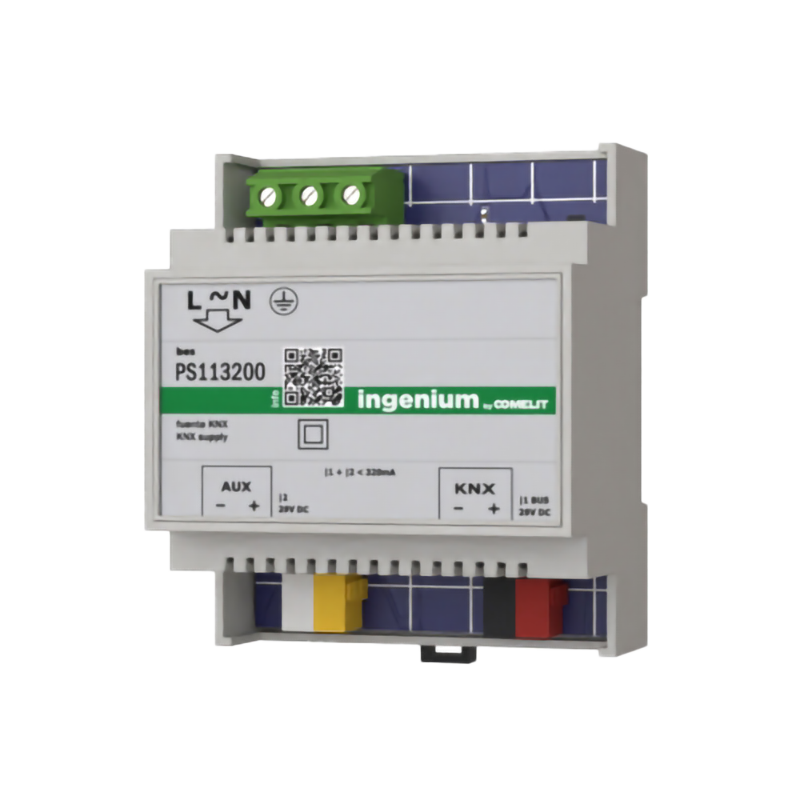

KNX 320 mA power supply with built-in choke. It includes an auxiliary power output (29 VDC) able to supply up to 320 mA combined with the KNX output. The device features short-circuit and overvoltage protection.
Technical data PS113200
- Nominal current 320 mA, as the sum of the bus output (I1) and the auxiliary output (I2)
- Supplied from 230 Vac mains
- I1: 29 Vdc with +1/-2 V tolerance, SELV, with KNX choke, on black/red terminal
- I2: 29 Vdc with +1/-1 V tolerance, SELV, without choke, on yellow/white terminal
- Green LED in normal operation, red LED on overload
- DIN rail mounting, 4 modules
- Operating temperature -10 to 55 °C and storage -30 to 60 °C
- Standards EN 50090-2-2, UNE-EN 61000-6-1:2007, UNE-EN 61000-6-3:2007 and UNE-EN 61010-1
The low-voltage KNX lines are laid in a route separate from the 230 V power cables, and the manufacturer prohibits connecting 230 V or any other external voltage to the bus.
