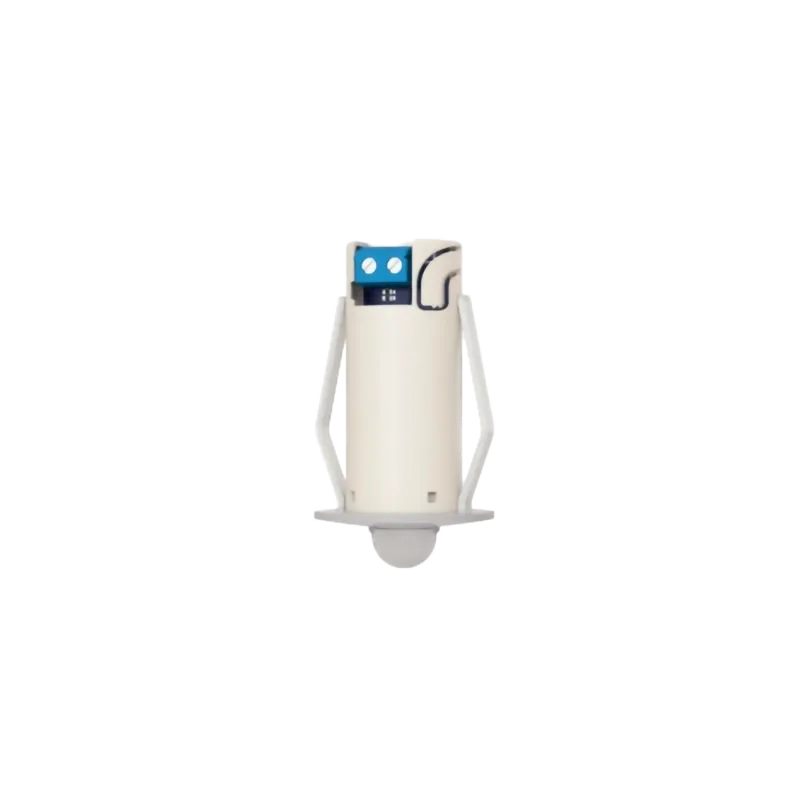

Flush-mounted 360° infrared motion detector, for connection via BUSing, with a detection area of 5 m in diameter at a height of 2.5 m. Desired actions can be programmed at the start and end of detection.
Technical data WS510000
- Type: infrared motion detector
- Mounting: flush-mounted
- Detection angle: 360°
- Detection area: 5 m diameter
- Mounting height: 2.5 m
- System: BUSing® Radio wireless home automation
- Programming: actions carried out when detection starts and when it ends
The wired ORIGEN series ING-SIFBUS-E for BUSing® offers the same 360° angle and the same coverage area. This WINGS series detector connects wirelessly, through BUSing® Radio.
Installation WS510000
The WS510000 is the SEIR 360 detector of the Wings range, powered from the 120–250 VAC, 50–60 Hz mains. It is built into a ceiling or an indoor wall and is not recommended for outdoor use. Direct sunlight, air currents and placement behind large objects reduce its detection reach. Wiring requires correct phase and neutral polarity, and surge protection must be installed outside the detector. Radio range is about 15 m at 868 MHz, and the operating temperature range is -10 °C to 55 °C. Programming from the app needs a Center Link unit, and a push button enters programming mode.
Difference between WS510000 and WS510020
Code WS510020 (SEIR 360BS) is a surface detector powered by a 3 V CR2477 lithium battery. It is screwed to a ceiling or indoor wall. Its size is Ø48 × 38 mm, with the same Ø 5 m coverage at 2.5 m height. The flush-mounted SEIR 360 takes its power from the mains.
Product code: WS510000. See also in the Wireless Automation Sensors category: WINGS RATE OF RISE SENSOR and WINGS MAGNETIC CONTACT SENSOR.
