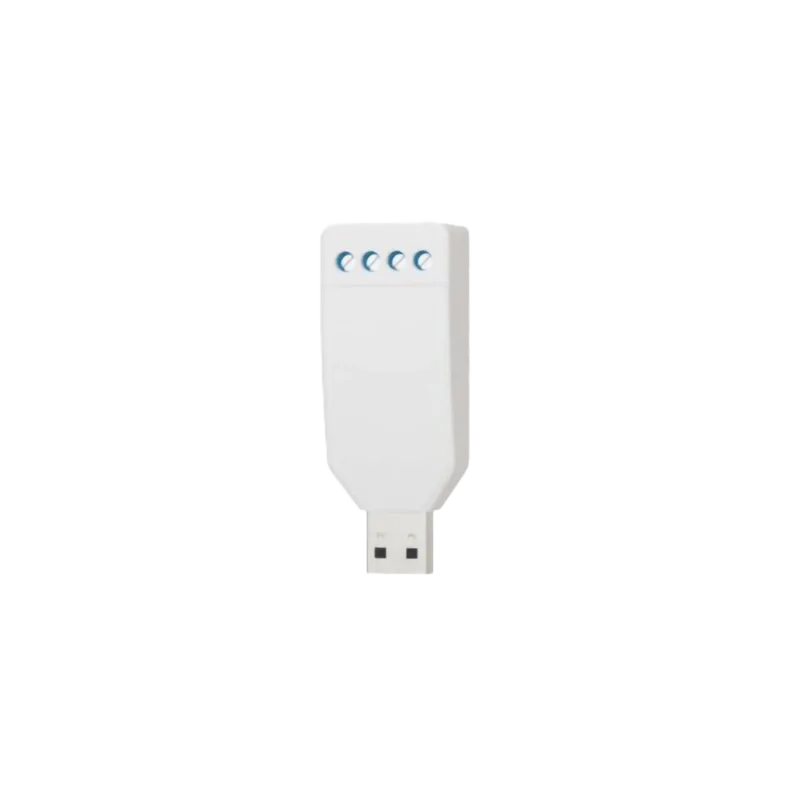

Gateway for connecting the BUSing® system to a personal computer (PC) via a USB port. It allows the devices to be programmed using the BUSing® development software (SIDE or SIDE KITs).
Technical data ING-BPC-USB
- Powered directly from the computer’s USB port
- Dimensions 65 x 25 x 5 mm
- The COM communication port and the communication speed (baud) are selected from SIDE
- Status LED and communications LED, for checking the message flow
- Operating temperature -10 to 55 °C, storage and transport -30 to 60 °C
- Standards EN 50090-2-2, UNE-EN 61000-6-3:2007, UNE-EN 61000-6-1:2007 and UNE-EN 61010-1, in line with the electromagnetic compatibility and low-voltage directives
Connection notes ING-BPC-USB
Since the unit is powered from USB, only conductors A and B are connected to the BUS. A flexible shielded two-conductor 0.22 mm² cable is specified for the BUS connection, while low-voltage lines (BUS and inputs) run in a separate conduit from the 230 V supply and the outputs.
Product code: ING-BPC-USB. See also in the Integration/Gateways category: ORIGEN-KNX GATEWAY and ORIGEN WI-FI INTERFACE.
