Universal 3-channel KNX dimmer with a maximum load of 200 W per channel, allowing any type of load to be dimmed, such as halogen, incandescent or LED. It is designed to prevent flickering, incompatibilities or other malfunctions when dimming the lighting.
The dimmer has 3 low-voltage (SELV) inputs for connection to conventional push buttons (not programmable, connected directly to the corresponding outputs), as well as overheating and short-circuit protection. Control is digital via a microcontroller, offering more than 200 adjustment points for excellent precision.

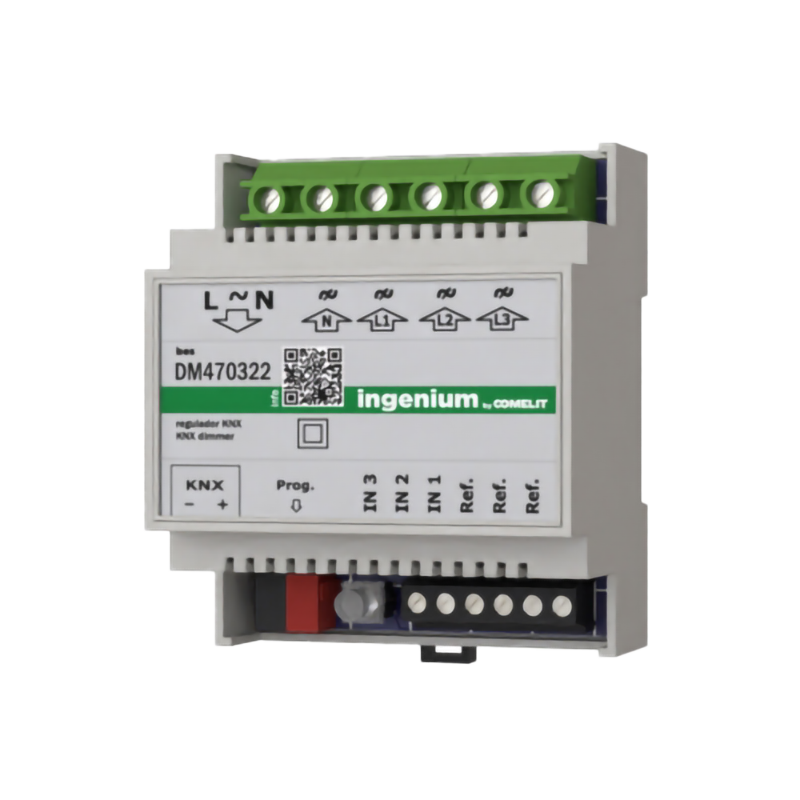

Technical data DM470322
- 3-channel universal KNX dimmer, BES series
- Maximum load: 200 W per channel
- Loads: halogen, incandescent, LED
- 3 SELV inputs for conventional push buttons, non-programmable, linked to the corresponding outputs
- Thermal protection and short-circuit protection
- Microcontroller-based digital control, more than 200 regulation points
Manufacturer documentation: ETS application program for the dimmers, DM470322 programming manual and technical manual, BES KNX catalogue and KNX drawings in DWG format.
Product code: DM470322. See also in the KNX Dimmers category: DIMMER KNX 1-10V – 2 CHANNELS and UNIVERSAL KNX DIMMER – 2 CHANNELS.
