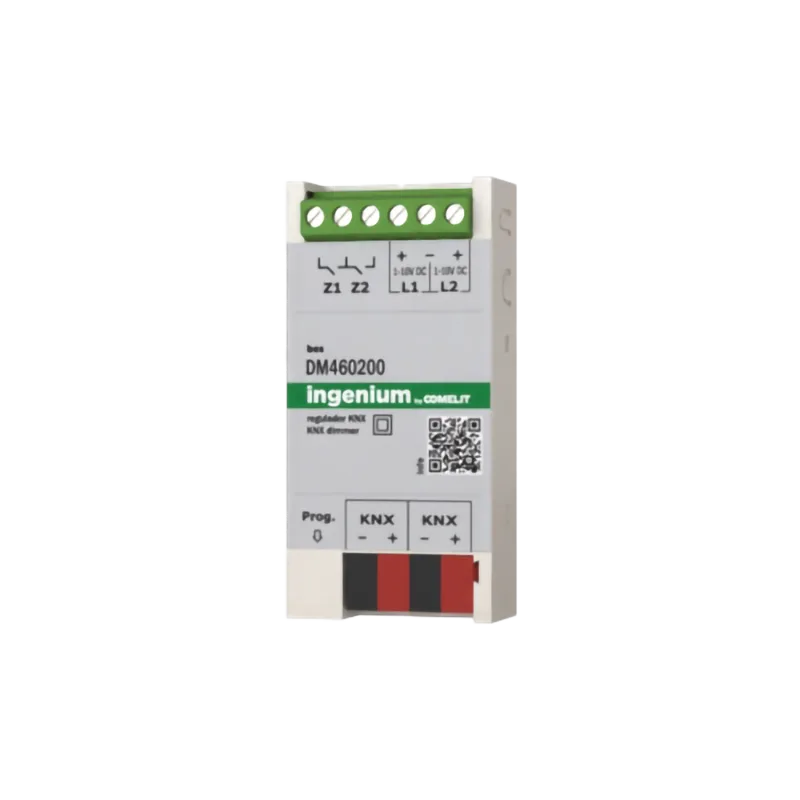

Universal 2-channel KNX dimmer with a 1-10V signal. Equipped with an on/off relay for phase disconnection.
Technical data DM460200
- KNX lighting controller for fluorescent lamps dimmed through a 1-10 V signal, in a two-channel version
- Maximum current of 35 mA on the 1-10 V output
- 16 scenes, programmed and recalled by bus commands
- Circuit with overload protection
- Microcontroller with more than 250 digital regulation steps
- Powered at 29 Vdc directly from the KNX bus, drawing 35 mA, the same as 7 bus devices
- Connections: KNX bus terminal, screw terminal block for the outputs
- Temperature range: operation -10 to 55 °C, storage and transport -30 to 60 °C
- Compliance with the electromagnetic compatibility and low-voltage directives: EN 50090-2-2, UNE-EN 61000-6-3:2007, UNE-EN 61000-6-1:2007, UNE-EN 61010-1
Operation and wiring DM460200
Commands arrive either over KNX or from a standard pushbutton on the low-voltage input, using the short and long press method. The ramp rate and the remaining dimming parameters are defined during programming. For sufficient insulation and to avoid interference, the bus and the inputs run in conduit separate from the 230 V lines and the outputs, and mains voltage or any other external voltage must never be connected to any point of the bus or the inputs.
Product code: DM460200. See also in the KNX Dimmers category: KNX-DALI BROADCAST GATEWAY and UNIVERSAL KNX DIMMER – 3 CHANNELS.
