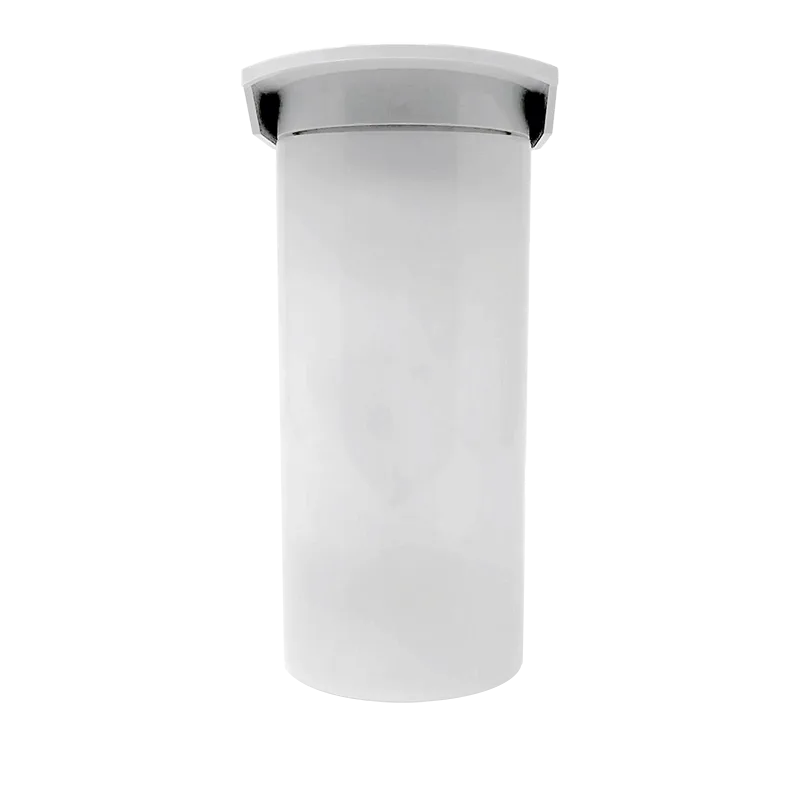

Outdoor triple-technology sensor with excellent detection performance (maximum 12 linear metres). Detection uses two passive infrared sensors and a pulsed K-band microwave (24 GHz), each with sensitivity adjustment and mounted on a base that can rotate horizontally through a wide angle (110° IR, 90° MW), with independent vertical adjustment for the lower infrared sensor. Equipped with anti-opening protection, anti-tear protection and masking detection. The sensor is supplied with a protective cover. It has an IP54 and IK08 protection rating. The recommended installation height is between 1.20 m and 2.20 m, with the option of using an articulated mounting bracket where required (product OPBRK). The main body is made of UV-resistant ABS plastic and polycarbonate. Stickers for partially masking the infrared heads are also included.
Product code: OPTT. See also in the VEDO category: VEDO/VEDOEASY PROXIMITY READER and STANDARD LCD KEYPAD FOR VEDO CONTROL PANELS.
