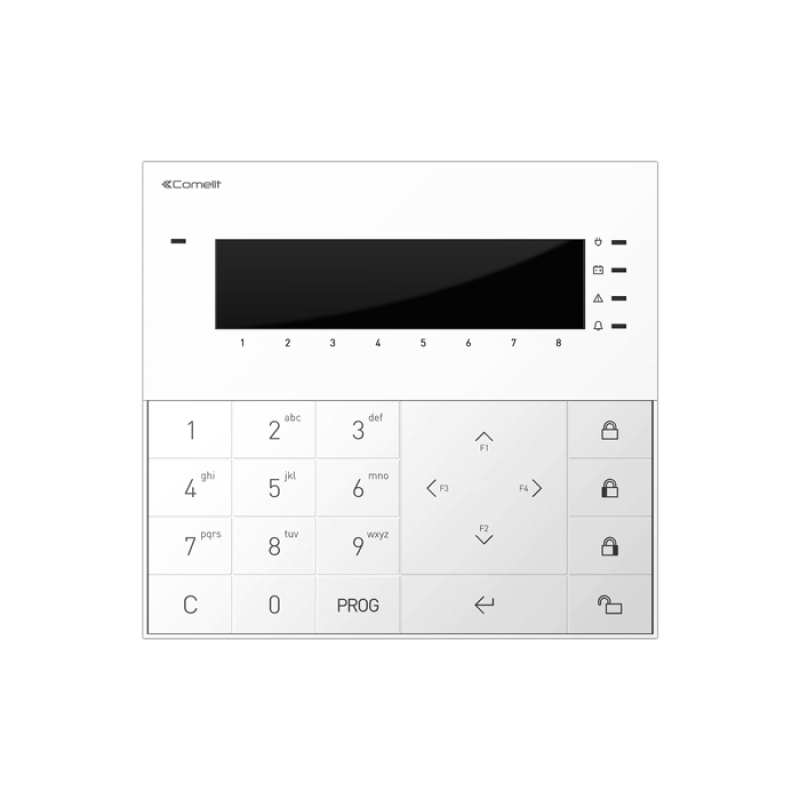

Alphanumeric keypad with LCD screen for managing and programming VEDO. Equipped with: 4 LED indicators (power ON, low battery, fault and alarm), 2 inputs freely programmable as NC, NO, SINGLE-DOUBLE-TRIPLE BALANCE and 4 programmable keys. The device is also equipped with a buzzer for audible notification of the various commands. Dimensions: 137 x 127 x 24 mm.
Technical data VEDOKP
- Type: soft-touch keypad for managing and programming VEDO series alarm control panels
- Display: alphanumeric LCD, with printed 8-area indication
- Key lighting: the backlight is managed by a built-in light sensor
- LEDs: 4 indicators, for mains power on, discharged battery, anomaly and alarm
- Inputs: 2, freely programmable as NC, NO, single, double or triple balance or as double zone
- Keys: 4 configurable function keys
- Protection: tamper device against opening and removal from the wall
- Audible confirmation: built-in buzzer for acoustic signalling of the various commands
- Dimensions: 137 x 127 x 24 mm
Product code: VEDOKP. See also in the VEDO category: TRIPLE TECH OUTDOOR SENSOR, OUTPRO and RF TRANSCEIVER MODULE, 32 CHANNELS.
