Technical data 41RBX020B

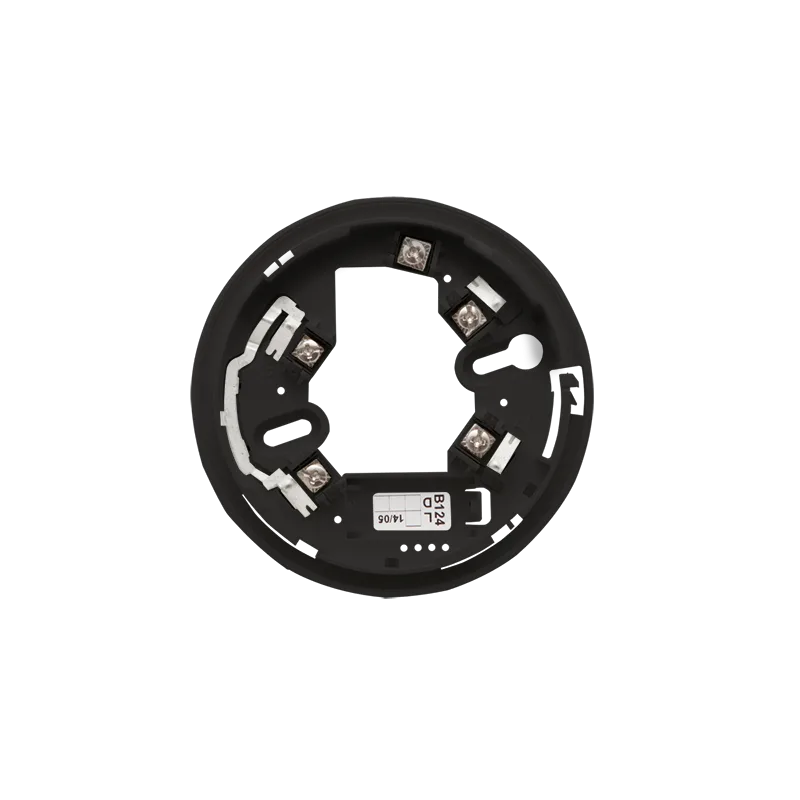

- Type: standard low-profile base for addressable detectors, in black
- Detector safety locking: supported
- Maximum conductor cross-section: 3.0 mm²
- Operating temperature range: -10 °C to +60 °C
- Operating humidity: 93 ± 3% at 40 °C
- Outer dimensions: 103 × 11 mm
- Weight: 15 g
Compatibility 41RBX020B
- The 41SAB101B sound base to EN 54-3 fits on top of it
The standard black base is the low version: the tall 41RBX020HB reaches 17.5 mm in height, while the standard base is limited to 11 mm and 15 g.
Difference between 41RBX020B and 41RBX020
The 41RBX020B is the standard addressable base in black, as its title states. For base 41RBX020, Comelit gives the same data, with conductors up to 3.0 mm² and a size of 103 × 11 mm. The 15 g weight and the 93 ± 3% operating humidity at 40 °C are also identical. On the 41RBX020, the manufacturer provides for the 41SAB101 sounder base and the 41SCB101 sounder base with beacon.
Compatible products 41RBX020B
Bases 41SAB101 and 41SCB101 of the LOGIFIRE range are powered directly by the control panel and controlled through a communication protocol. Both include a built-in isolator, EN 54-3 and EN 54-17 certification, and 32 tones at two sound levels. A detector mounts directly on top of them, reducing the installation space. The 41SCB101 adds a red flashing beacon.
See also in the Addressable Fire Detection System category: TALL BASE FOR ADDRESSABLE DETECTORS, BLACK and MINI ADDRESSABLE MODULE, ONE RELAY OUTPUT.
