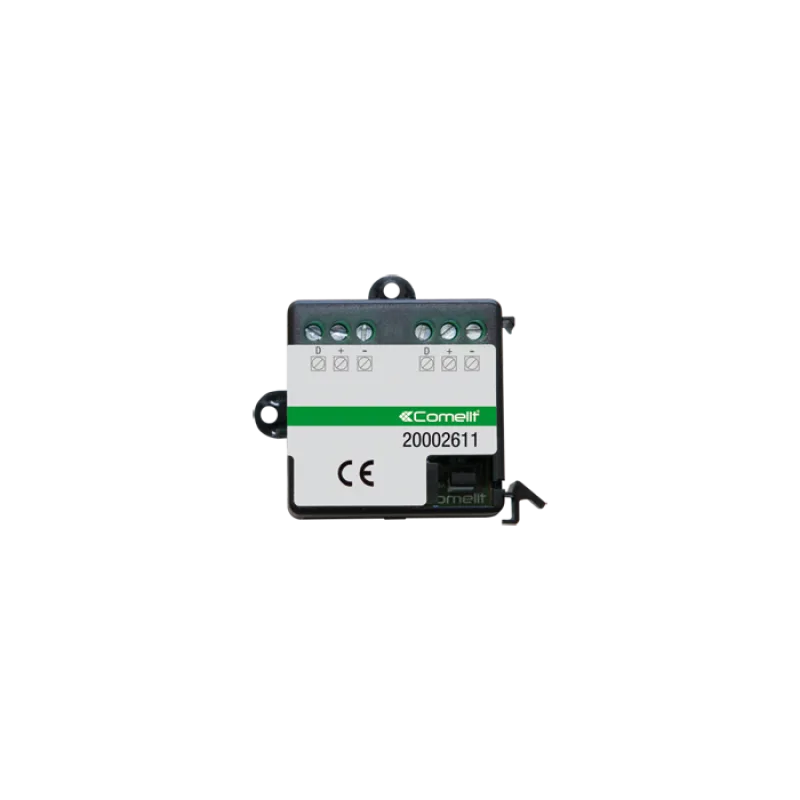

Interface for the connection between the SimpleHome BUS and a computer. The interface is equipped with a micro USB socket for connection to the computer (micro USB cable not included). Dimensions 42x42x18mm (1 DIN module).
Technical data 20002611
- Function: interface connecting the SimpleHome BUS to a computer
- Port to the computer: micro USB socket
- Micro USB cable: not included
- Configuration software: SimpleProg
- Multiple interfaces: more than one can be on the same bus at the same time
- Dimensions: 42 × 42 × 18 mm
- Size: 1 DIN module
Through the interface, the computer running the SimpleProg software communicates with the bus to configure the SimpleHome installation.
Product code: 20002611. See also in the Special Components category: SIMPLEHOME BUS ISOLATOR/REPEATER and SIMPLEHOME MODULE LOGIC FUNCTIONS.
