SIREN WITH RED BEACON

Product code

48SCI040

Guaranteed Safe Checkout

Single product layout Accessories

Description & Features

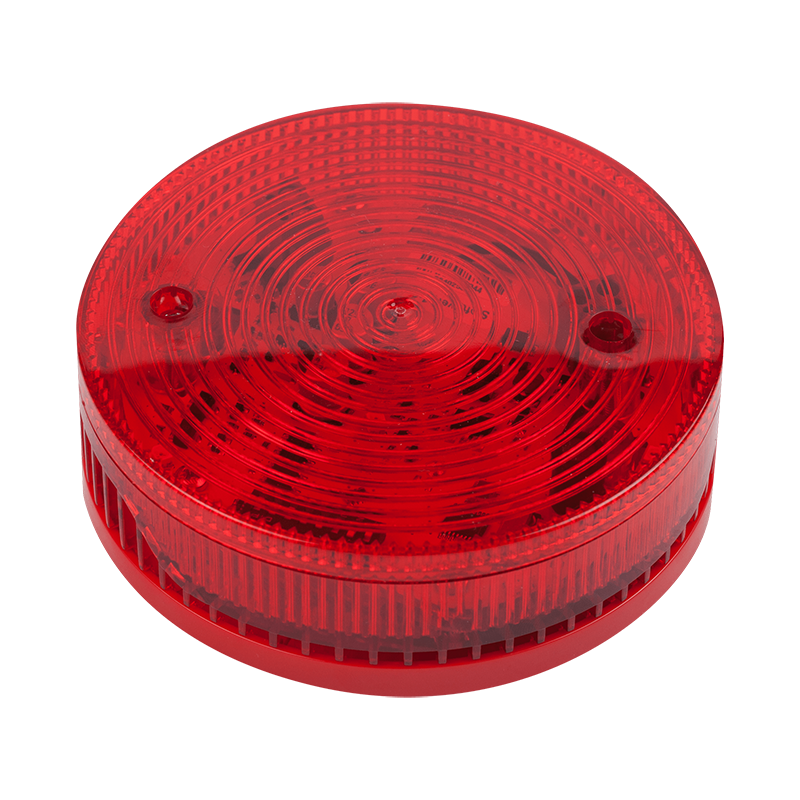

Wall siren with red beacon, designed for installation in conventional fire detection systems. It supports 32 different tone types and two volume levels, which are set via jumpers. The device has two additional separate inputs for Alarm and Evacuation signals. The tones of the inputs are different, so that users in the protected area can recognise them easily. The Evacuation signal has the highest priority. Certified to the EN54 standard, part 3.

Technical data 48SCI040

  • Wall-mounted sounder with red strobe for conventional fire detection systems
  • 32 tone types and 2 sound levels, selected via jumpers
  • 2 separate inputs for Alarm and Evacuation events, each with a different tone
  • The Evacuation event has the highest priority
  • Certified to EN 54-3

Standards 48SCI040

The 48SCI040 is a sounder approved to EN 54-3 and EN 54-13, with BOSEC certification, according to Comelit’s fire detection reference guide. EN 54-3 covers fire alarm sounders. EN 54-13 covers the compatibility assessment of the sounder with the other system components. An EN 54-23 approval for the red beacon is not listed in the guide.

Installation 48SCI040

  • 43RBA002: spacer that allows side entry of the wires, using cable glands for visible wiring. It supports this sounder as well as the conventional 48SAI020 and 48SCI060.
  • 48PIN001EN: transparent Plexiglass indicator panel with the FIRE ALARM text, 350 x 140 x 5 mm, with space for the sounder. It is fixed to the wall with the supplied screws and spacers.

Difference from 48SCI060

The 48SCI060 is a conventional sounder with a white strobe, for indoor use only, with 32 tones selected via DIP switch. The white strobe model also holds EN 54-23 approval, while the red beacon model is set with jumpers.

Product code: 48SCI040. See also in the Conventional Fire Detection System category: CONVENTIONAL BASE WITH DIODE and BASE WITH RELAY FOR CONVENTIONAL DETECTORS.
