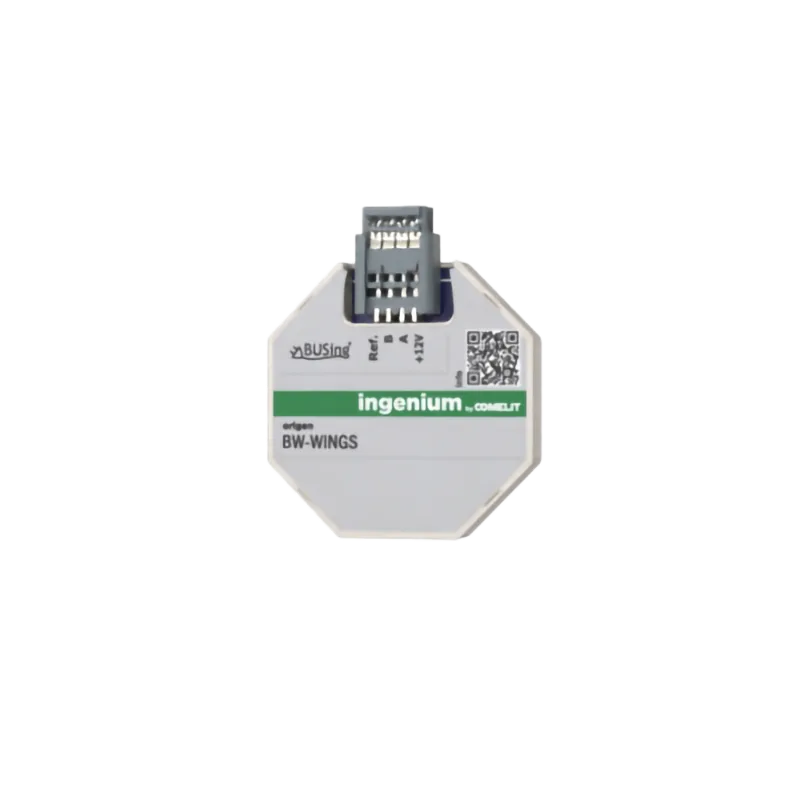

Gateway for connecting wired BUSing® devices with Wings RF wireless devices (BUSing® wireless 868 MHz). It performs bidirectional conversion of the commands sent to the various devices in a mixed installation where wired and wireless components coexist.
Technical data ING-BW-WINGS
- Gateway between wired BUSing and wireless Wings RF
- Wireless side: BUSing wireless at 868 MHz
- Converts commands in both directions, so wired and wireless devices can be controlled together
- Application: mixed installations where wired and wireless components coexist
Function and use ING-BW-WINGS
The ING-BW-WINGS gateway is an interface that handles up to 255 available IDs for Wings wireless devices. Wireless communication offers 13 radio channels. The maximum recommended distance between the gateway and the wireless devices is 15 m.
Installation ING-BW-WINGS
The Wings gateway is flush mounted in a box and measures 55 x 55 x 15 mm. Power comes from the BUS, 9–16 V DC, with a consumption of 60 mA at 12 V DC. The gateway operating temperature range is -10 °C to 55 °C. The BUS and input lines of the gateway run separately from the 230 V cables and the outputs.
Product code: ING-BW-WINGS. See also in the Integration/Gateways category: ORIGEN WI-FI INTERFACE and ORIGEN-KNX GATEWAY.
