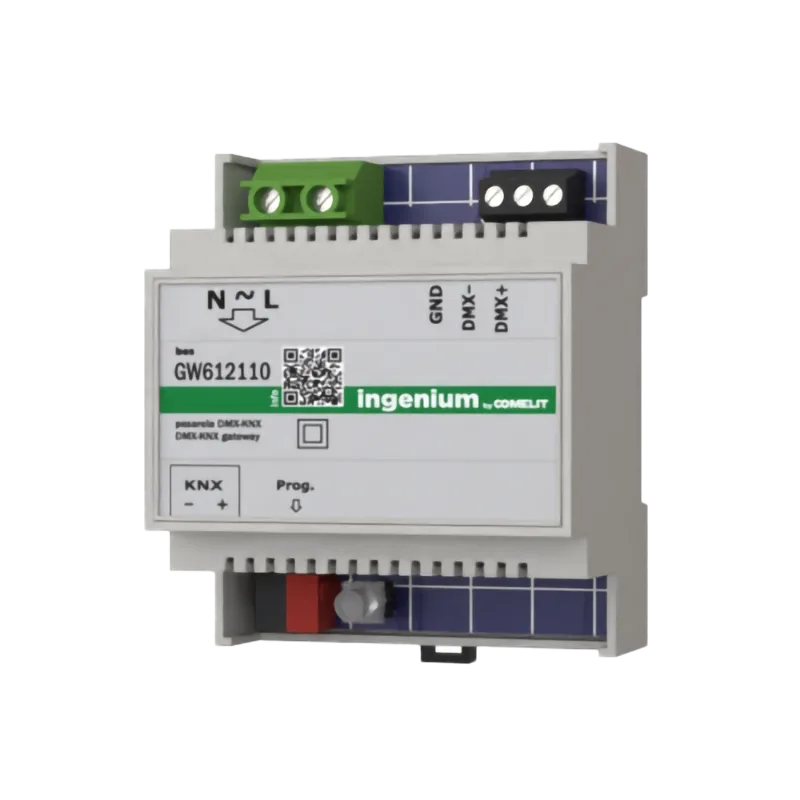

Bidirectional gateway between the KNX and DMX 512 protocols, fully configurable via the ETS software. It allows simultaneous control of up to 48 DMX channels, with the ability to run 8 fully customisable scenes and 8 sequences.
Technical data GW612110
- Bidirectional KNX – DMX 512 gateway
- Configuration: fully via the ETS software
- Simultaneous control of up to 48 DMX channels
- 8 fully customisable scenes
- 8 sequences
For BUSing installations there is the ORIGEN–DMX GATEWAY (ING-DMXBUS) with the same figures: 48 DMX channels, 8 scenes and 8 sequences.
Function and use GW612110
The GW612110 is a KNX – DMX512 gateway, named DMXBUS-K in the Ingenium KNX catalogue. The gateway controls DMX devices from KNX in master or slave mode. In master mode it generates the DMX512 signal itself, while in slave mode it receives the signal from another DMX controller. The 8 scenes and 8 sequences are programmed and executed by the gateway.
Product code: GW612110. See also in the KNX Dimmers category: KNX ACTUATOR 6 INPUTS – 4 OUTPUTS 16A and KNX-DALI GATEWAY.
