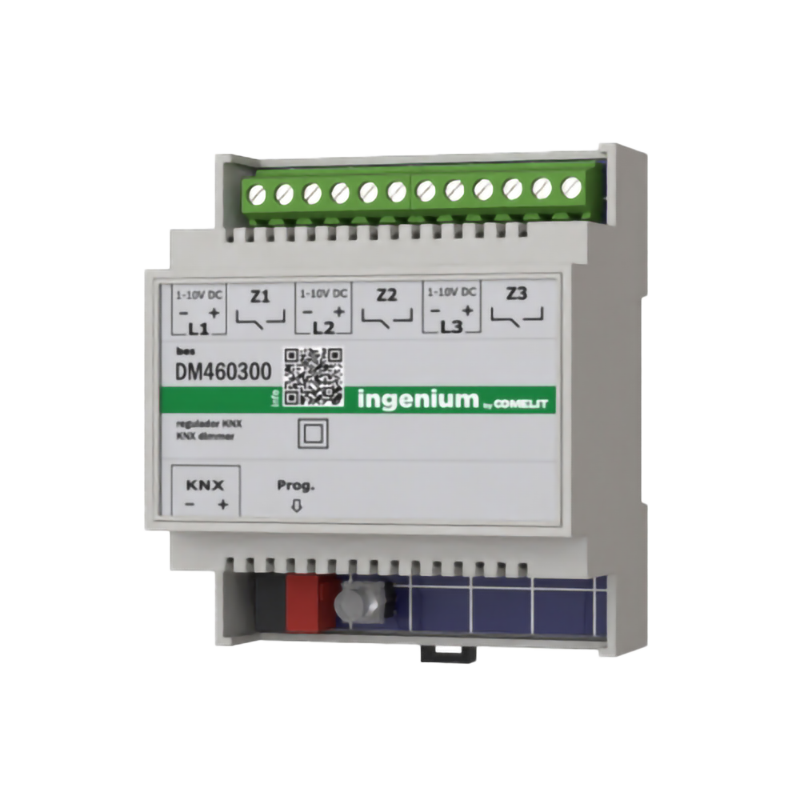

Universal 3-channel KNX dimmer with a 1-10V signal. Equipped with an on/off relay for phase disconnection.
Technical data DM460300
- Lighting controller for the KNX bus, for fluorescent lighting dimmed by a 1-10 V signal
- Three regulation channels
- Maximum current of 16 A on the on/off relay and 35 mA on the 1-10 V output
- 16 programmable scenes executed from bus commands
- Overload circuit protection
- Digital regulation control by a microcontroller with more than 250 regulation points
- Power supply 29 Vdc from the KNX bus, consumption 35 mA (equivalent to 7 bus devices)
- KNX bus connection terminal and screw terminal blocks for the outputs
- DIN rail mounting, 4 modules
- Operating temperature from -10 to 55 °C, storage and transport from -30 to 60 °C
- Standards: EN 50090-2-2, UNE-EN 61000-6-3:2007, UNE-EN 61000-6-1:2007, UNE-EN 61010-1
Operation and installation DM460300
The controller receives orders from the KNX bus or from any conventional pushbutton connected to its low-voltage input, using the short and long press method. The ramp speed and the other dimming characteristics are set by programming. Low-voltage lines (KNX bus and inputs) run in a duct separate from the 230 V power lines, and no external voltage is connected to the bus or to the inputs.
Product code: DM460300. See also in the KNX Dimmers category: KNX DIMMER RGBW and KNX DIMMER 0-10V – 4 CHANNELS.
