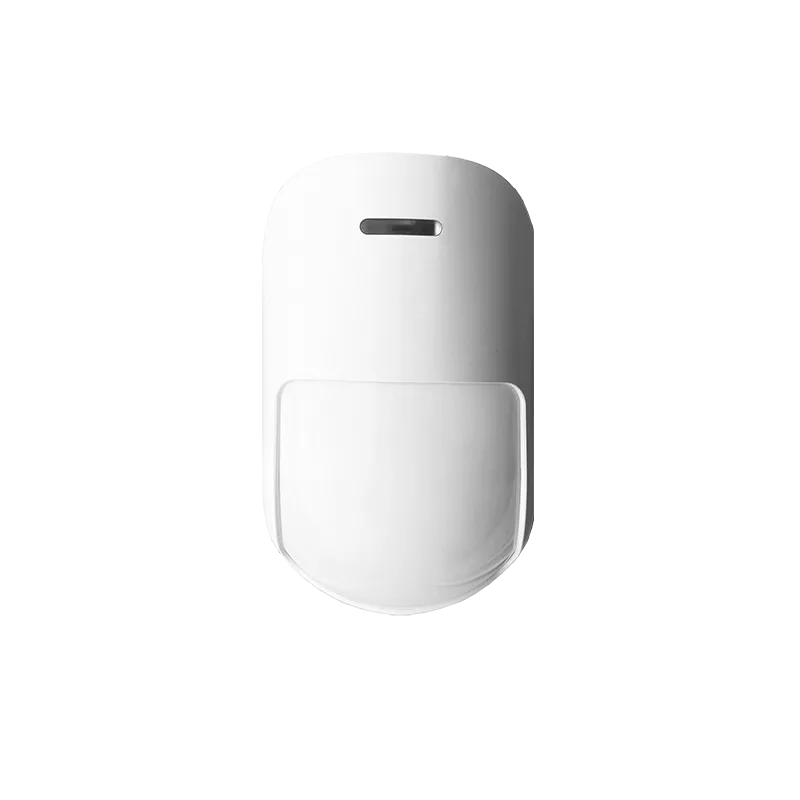

Indoor dual-technology detector, PIR + K-band microwave, with a range of 12 m and a coverage angle of 90°, recommended installation height 2.1 metres. Selectable AND/OR/triple-knock operation, digital signal analysis, solid state relay outputs. Independent PIR and MW sensitivity adjustment. PIR with selectable motion detection speed and pet immunity up to 12 kg. Power supply 9 to 18 VDC with reverse polarity protection, standby consumption 14 mA@12 VDC. Mounting height 1.5 m to 3 m. ABS plastic housing, white RAL9003. Dimensions 119x66x46 mm. Optional INBRK bracket for wall or ceiling mounting. Certified to EN50131 grade 2.
Technical data INDT
- Series: INPRO, wired dual-technology detector
- Technologies: PIR and K-band microwave
- Operating logic: AND, OR or triple-knock, selectable
- Indications: three LEDs (alarm and pre-alarm, PIR, MW), which can be excluded
- Adjustments: independent sensitivity trimmers for the PIR and the microwave
- Coverage: 12 m at a 90° angle, typical height 2.1 m
- Pet immunity: up to 12 kg
- Dimensions: 119 x 66 x 46 mm
Compatibility INDT
- INBRK: adjustable INPRO series bracket for wall or ceiling
- IN5TPR: kit of 5 tamper switches for the INBRK bracket
Certifications INDT
- EN50131 grade 2
- INCERT certification
Product code: INDT. See also in the VEDO category: DUAL PIR OUTDOOR SENSOR, OUTPRO and DUAL-TECHNOLOGY CURTAIN-EFFECT SENSOR, WHITE.
