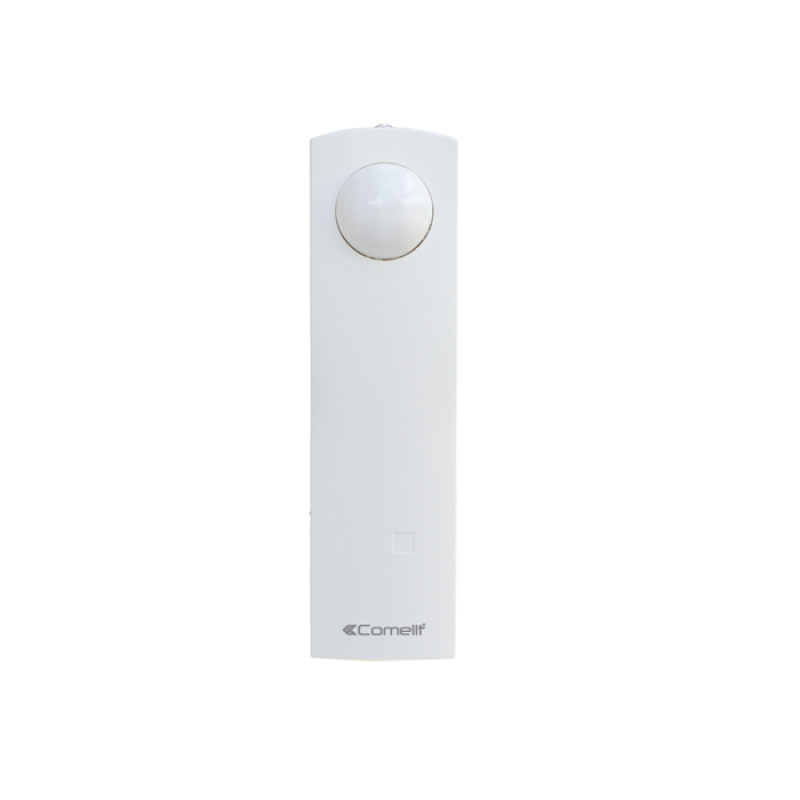

DUAL-TECHNOLOGY CURTAIN-EFFECT SENSOR, WHITE

Product code

DT02CW

Guaranteed Safe Checkout

Single product layout Accessories

Description & Features

Outdoor dual-technology sensor (microwave and PIR technology), white, used to create a curtain-type barrier that protects doors and windows. Adjustable range from 2 m to 3.5 m. The sensor can be installed in 2 different positions (horizontal and vertical). PIR range 165° with 2 elements and MW at 24 GHz, lens with 6 beams on 1 level, power supply 9 to 15 VDC, maximum current draw 26 mA, white ABS housing, dimensions 130x36x34 mm.

Technical data DT02CW

  • Housing colour and material: white ABS plastic
  • Detection technologies: passive infrared (PIR) with 2 elements and microwave (MW) at 24 GHz
  • Detection opening: 165°
  • Lens: 6 beams on 1 level
  • Range: adjustable from 2 to 3.5 m
  • Power supply: 9 to 15 VDC
  • Maximum current draw: 26 mA
  • Operating temperature: from -25 to +55 °C
  • Dimensions: 130 x 36 x 34 mm

The lens of the infrared section rotates horizontally, which is why the sensor can be mounted in 2 different positions. It also features an alarm direction recognition system that can be enabled as an option and timed. It belongs to the curtain-effect sensors of the Vedo intruder alarm system. For this white model the manufacturer provides a conformity declaration and a technical manual shared with the brown version DT02CB.

Product code: DT02CW. See also in the VEDO category: DUAL-TECHNOLOGY WIRED SENSOR, 12M INPRO and DUAL-TECHNOLOGY CURTAIN-EFFECT SENSOR, BROWN.
