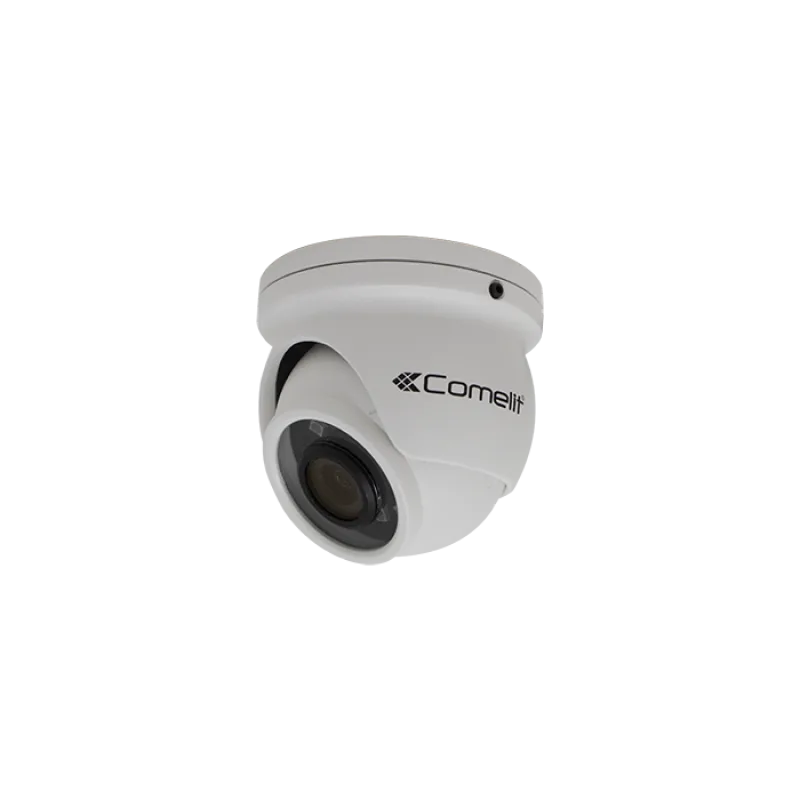

AHD/TVI/CVI/CVBS (960H) Day & Night minidome camera, with fixed 3.6 mm lens and FULL HD (1080p) resolution. The housing has IP66 protection and 12 infrared LEDs with a range of up to 10 metres.
Technical data AHDCAMS02F01A
- Type: Day & Night colour minidome camera
- Video output: AHD, TVI, CVI and CVBS (960H)
- Resolution: Full HD 1080p (2 MP)
- Lens: fixed 3.6 mm
- Infrared illumination: 12 LEDs, range up to 10 m
- Housing: waterproof, IP66 protection
Function and use AHDCAMS02F01A
The AHDCAMS02F01A is a Smart series minidome camera with a 1/2.9″ progressive scan CMOS sensor. The 3.6 mm lens gives fields of view of 84° horizontal, 45° vertical and 100° diagonal. The Full HD image is transmitted at 25 fps. Sensitivity reaches 0.01 lux in colour and 0 lux in black and white with the IR LEDs on. Day and night switching uses a mechanical IR filter.
Image functions include 50 dB D-WDR, 3DNR noise reduction, BLC back light compensation and automatic or manual white balance. The camera title is shown in the OSD menu.
Installation AHDCAMS02F01A
Power supply is 12 VDC, with a maximum absorption of 4.8 W. Cable distance reaches 300 m with RG59 coaxial cable or 100 m with UTP. The CVBS analogue output on the BNC connector has a level of 1 Vpp at 75 ohm. The output signal type on the BNC is changed with the joystick, held for more than 5 seconds. Moving it left selects CVBS, right selects TVI and down selects CVI. The die-cast aluminium housing has a diameter of 59 mm, a height of 55 mm and a weight of 300 g. Operation is allowed from -10 to 50 °C, with relative humidity from 25 to 95%.
