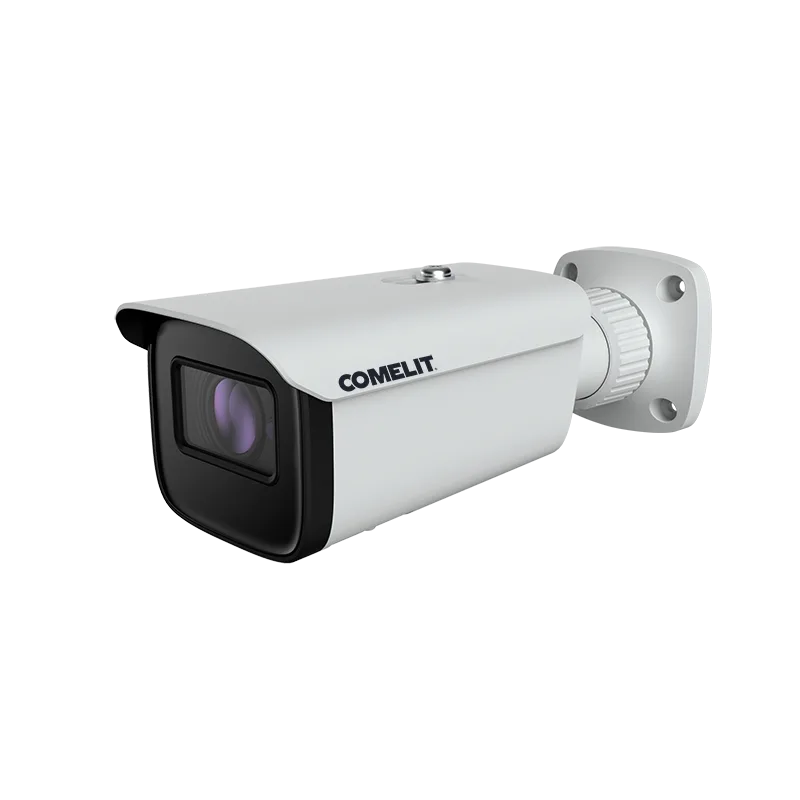

AHD/TVI/CVI/CVBS bullet camera, 4 MP resolution, motorised 2.8-12 mm lens, IR LED with a range of 30 m, 12 VDC power supply, die-cast aluminium housing with IP67 protection.
Compatible accessories: JBA-BA, CMA-BA, WMA-BA, PMA-A, AMA-A.
Technical data AB04N1ZA
- Type: all-in-one bullet camera
- Supported signals: AHD, TVI, CVI, CVBS
- 4 MP resolution with motorised 2.8–12 mm lens
- Night shooting with IR LEDs, 30 m range
- Operating voltage 12 VDC
- Waterproof IP67 die-cast aluminium housing
Compatibility AB04N1ZA
- JBA-BA: large IP66 junction box
- PMA-A: pole bracket for poles from 80 to 140 mm in diameter
- JBA-01A, CMA-BA, WMA-BA and AMA-A: further accessories listed as compatible by Comelit
Mounting accessories AB04N1ZA
AB04N1ZA is a 4 MP AHD bullet camera that shares accessories with three Comelit IP bullet cameras. JBA-BA, CMA-BA, WMA-BA, PMA-A and AMA-A also appear in the lists of the IB04N2ZA, IPBCAMN04FB and IPBCAMN08FA.
- JBA-BA: IP66 connection box in white die-cast aluminium, 117.9 mm in diameter and weighing 380 g
- WMA-BA: big Advance Next wall backplate, 188.5 mm deep and weighing 520 g, combined with JBA-BA
Product code: AB04N1ZA. See also in the Analogue category: AHD MINIDOME CAMERA: 2MP, 3.6MM, IR 10M and AHD TURRET CAMERA, 4MP, 2.8-12MM.
