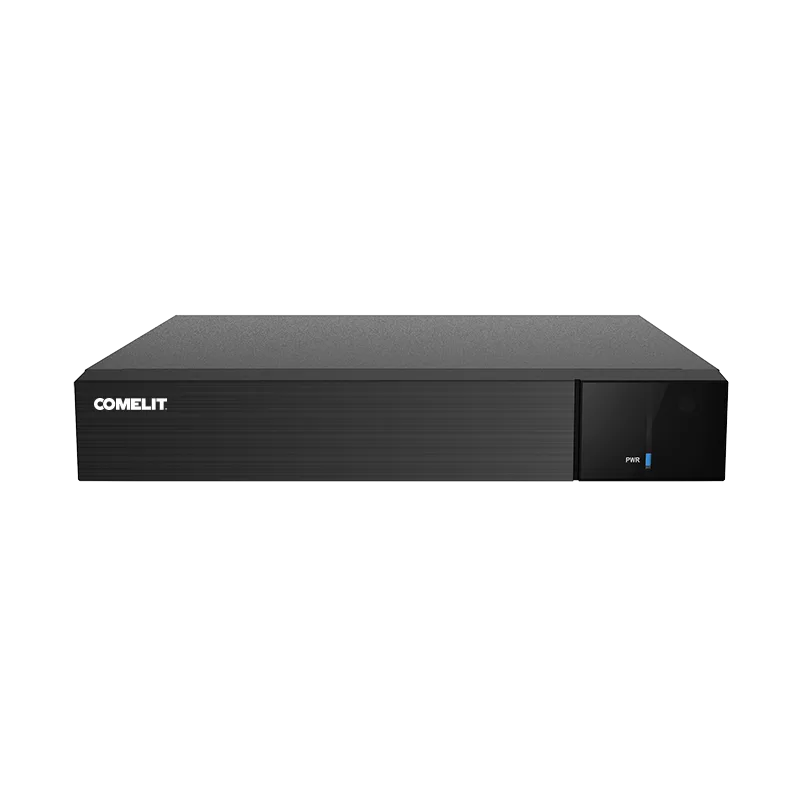

Stand-alone 5-in-1 hybrid technology digital video recorder (AHD/TVI/CVI/CVBS/IP), with 4 analogue video inputs and 2 IP channels. H.264/H.265 compression.
Compatible with browsers: IE / Google Chrome / Edge / Firefox / Safari.
12 V power supply included.
Technical data AHDVR004N05A
- Video inputs: 4 BNC (5MP/4MP/1080P/720P/WD1) plus 2 IP 5MP, or up to 6 IP 5MP channels with no BNC in use
- Video outputs: 1 VGA and 1 HDMI at 1920 x 1080, plus 1 BNC spot output
- Audio: 1 input and 1 output
- Recording and playback frame rate: BNC 5MP Lite (1280 x 1936) at 10 fps, 4MP Lite (1280 x 1440) and 1080P at 15 fps, IP at 30 fps
- 1 TB hard disk supplied, maximum capacity 10 TB
- Recording methods: automatic, manual, scheduled and event-based, with dual streaming
- Protocols: DHCP, HTTP, HTTPS, ONVIF Profile-S, Profile-G and Profile-T, maximum bandwidth 16 Mbps
- Up to 5 simultaneous connections, remote management with Comelit CCTV Manager and the Comelit CCTV app
- Video analysis only with dedicated cameras, 4 privacy zones
- Ports: 1 Ethernet 10/100/1000 Mbit/s, 2 USB 2.0, 1 RS485
- Fanless operation, maximum absorption 5 W at 12 VDC
- Black metal housing, dimensions (H x W x D) 42 x 255 x 222 mm, weight 1580 g
- Operating temperature -10 to 50 °C, humidity 25 to 90%
Package contents AHDVR004N05A
- Power supply
- Mouse
Product code: AHDVR004N05A. See also in the Analogue XVR category: XVR 8 INPUTS 5MP, AI, 1 TB HDD and XVR 16 INPUTS 5MP, AI, 2 TB HDD.
