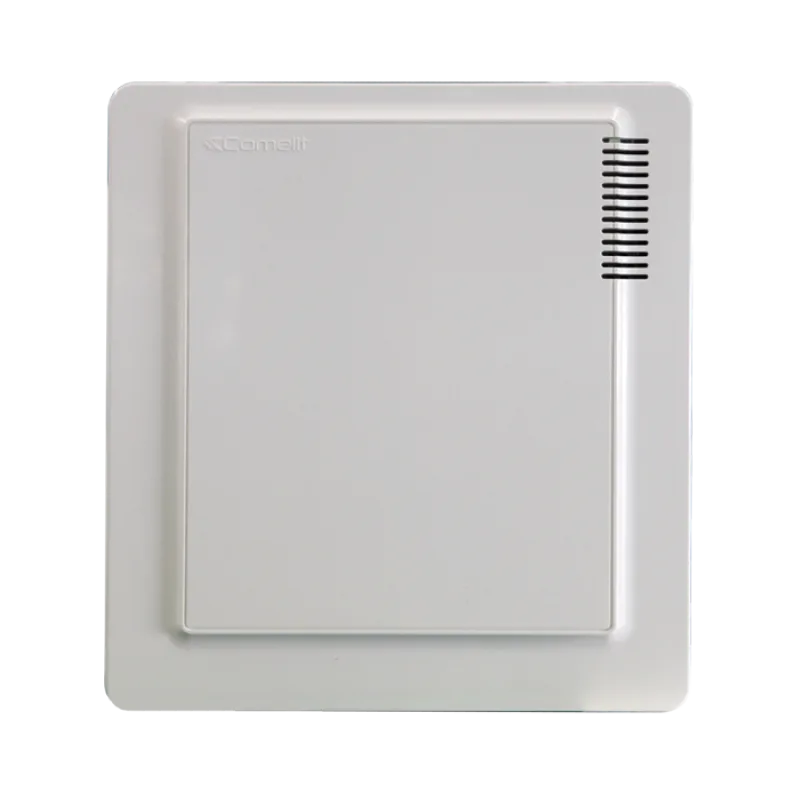

Surface-mounted housing in flame-retardant ABS for VEDO control panels 30001208, 30001234 and 30001268. Colour: White RAL 9003. 7Ah battery, power supply unit art. 30076101 and up to 2 expansion cards.
Technical data BOXPLASTIC
- Dimensions (W x H x D): 280 x 260 x 80 mm
- Weight 803 g (enclosure, micro switch and fixing screws)
- Security grade 2 and environmental class II according to EN50131-1, when the installation instructions are followed
- Standards: EN50131-1, EN50131-3, EN50131-6, EN50136-1, EN50136-2, EN 62368-1/A1:2018, EN50130-4, CE marking
- Operating temperature -10 to +55 °C with dry heat and -10 to +40 °C with relative humidity up to 93%, non-condensing
- Anti-tear tamper hole and cable entry holes
Compatibility BOXPLASTIC
- VEDO control panel boards: PCBVEDO10, PCBVEDO34, PCBVEDO68, PCBVEDO200 and PCBPSU
- PSU15 or PSU25 power supply unit and 30076003 battery
- RF10VEDO, RF32VEDO, VEDO8I8O/VEDO8I8OA expansions
- Positions for the VEDOGSM, VEDOGSM3G or VEDOGSM4G communication module, the VEDOVOICE message expansion and the VEDOIP, VEDOIPA or VEDOWIFI IP module
Installation BOXPLASTIC
The enclosure is fixed to the wall with screws and plugs and is intended for indoor use only. For grade 2 certification the tamper must be mounted and correctly configured, while the low-voltage (SELV) and high-voltage circuits follow separate paths inside the box.
Product code: BOXPLASTIC. See also in the VEDO category: WIRED DIGITAL PIR SENSOR 12M INPRO and WALL-MOUNTED METAL HOUSING FOR VEDO CONTROL PANELS.
