Die-cast aluminium finish with cataphoresis treatment for increased resistance to chemical and environmental corrosion, including damage from UV rays. Projection of 10 mm from the wall.
Technical data UT9161

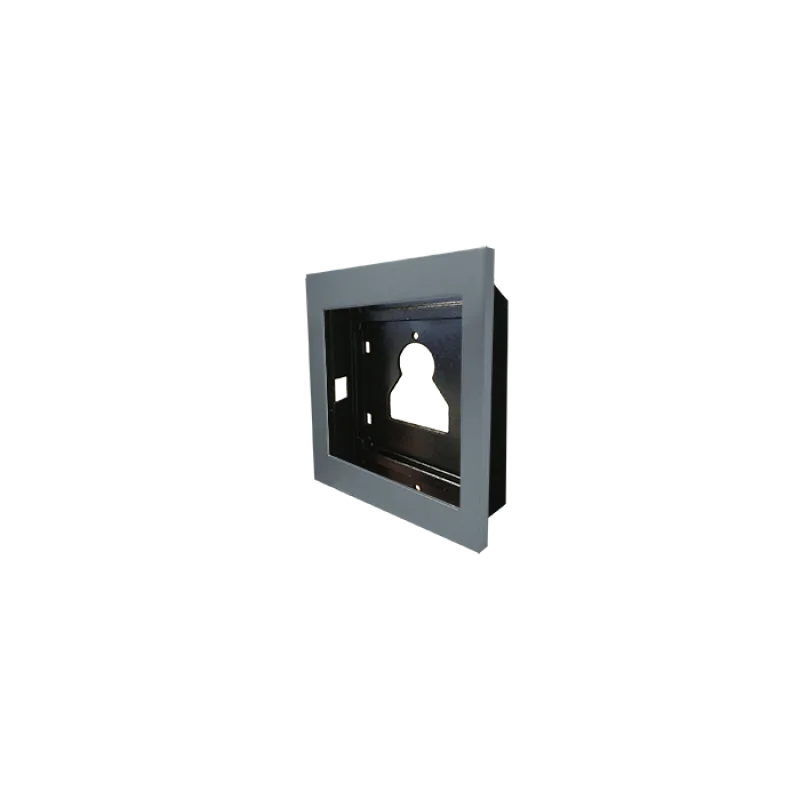

- Type: flush-mounting frame for 1 Ultra entrance panel module
- Dimensions (L x H x D): 125.5 x 136 x 35 mm
- Metal support that holds the module without screws
- Die-cast aluminium finishing frame with cataphoresis treatment
- Projection from the wall: 10 mm
Compatibility UT9161
- Flush-mounting boxes art. 3110/1 and 3110/1A
- Several modules can be installed next to one another
In black RAL 9005 the same single-module frame is available as UT9161B.
Product code: UT9161. See also in the ULTRA IP category: FLUSH MOUNTING BASE AND FRAME FOR 1 ULTRA ENTRANCE PANEL, BLACK and SURFACE MOUNTING BASE AND FRAME FOR 6 ULTRA ENTRANCE PANELS.
