Die-cast aluminium finish with cataphoresis treatment for increased resistance to chemical and environmental corrosion, including damage from UV rays. Projection of 10 mm from the wall.

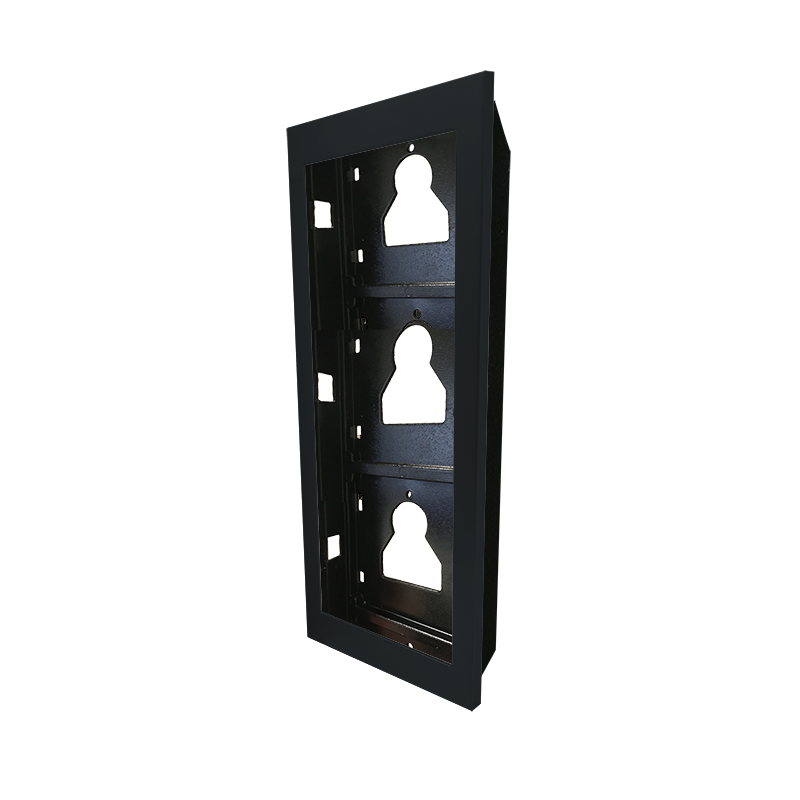

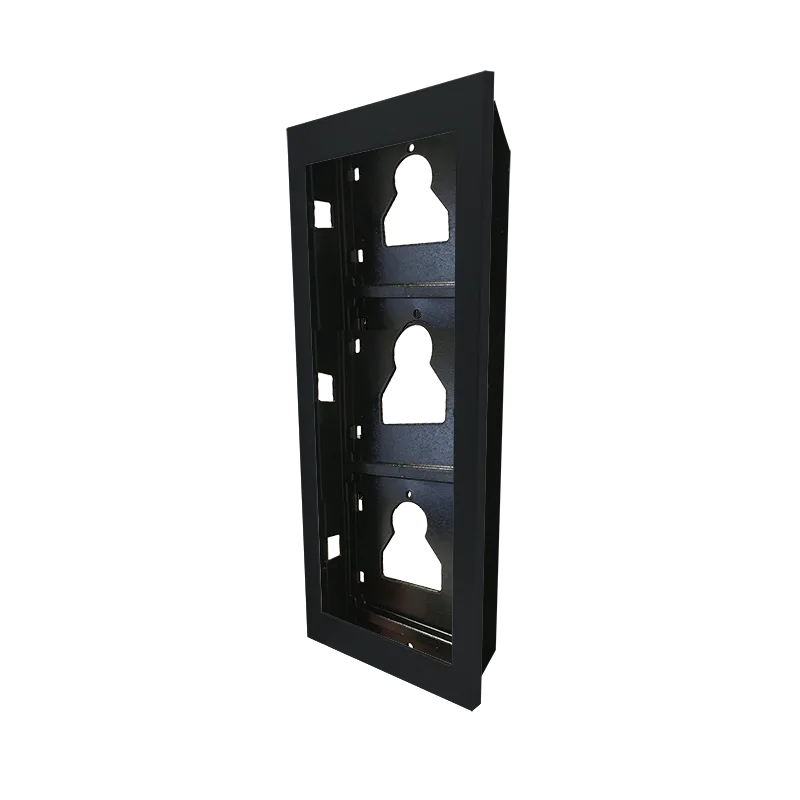

Technical data UT9163B
- Black colour, RAL 9005
- Flush-mounting frame for 3 Ultra entrance panel modules
- Dimensions (L x H x D): 125.5 x 317.5 x 35 mm
- The three modules are fixed to a metal support, without screws
- Die-cast aluminium frame with cataphoresis treatment
Compatibility UT9163B
- Flush-mounting boxes art. 3110/3 and 3110/3A
- Horizontal layout of several modules side by side
The three-module frame UT9163 is also available with the same dimensions. For surface mounting in black, the three-module housing is UT9173B.
Product code: UT9163B. See also in the ULTRA IP category: FLUSH MOUNTING BASE AND FRAME FOR 4 ULTRA ENTRANCE PANELS and FLUSH MOUNTING BASE AND FRAME FOR 3 ULTRA ENTRANCE PANELS.
