Universal 1-channel KNX dimmer with a maximum load of 200 W. This device allows any type of load to be dimmed, whether halogen, incandescent or LED. It is designed to prevent flickering, incompatibilities or other malfunctions resulting from changes in lighting intensity.
The dimmer has one low-voltage (SELV) input for connection to a conventional push button (not programmable, connected directly to the corresponding output). It includes thermal protection and short-circuit protection. Control is based on a microcontroller with more than 200 adjustment points for excellent precision.

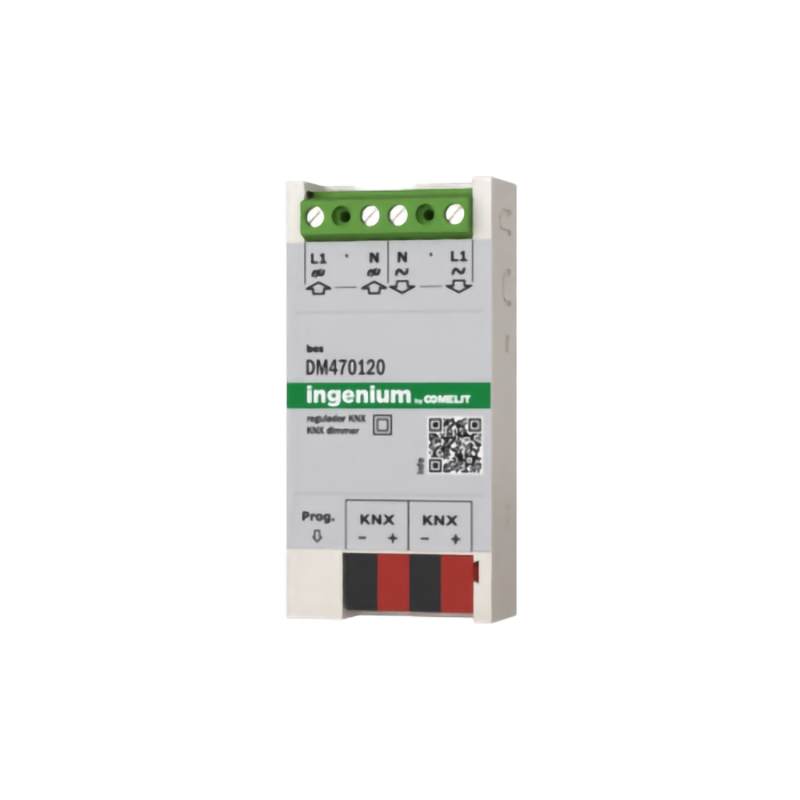

Technical data DM470120
- Universal KNX dimmer, concealed (flush-mounted), 1 channel
- Maximum load: 200 W
- Suitable for halogen, incandescent or LED loads
- Prevents flickering, incompatibilities and malfunctions when changing the intensity
- 1 SELV input for a conventional push button, non-programmable, linked to the corresponding output
- Thermal protection and short-circuit protection
- Microcontroller control, more than 200 regulation points
For more 200 W channels there are the DM470220 (2 channels) and DM470322 (3 channels).
Product code: DM470120. See also in the KNX Dimmers category: UNIVERSAL KNX DIMMER – 2 CHANNELS and KNX DIMMER RGBW.
