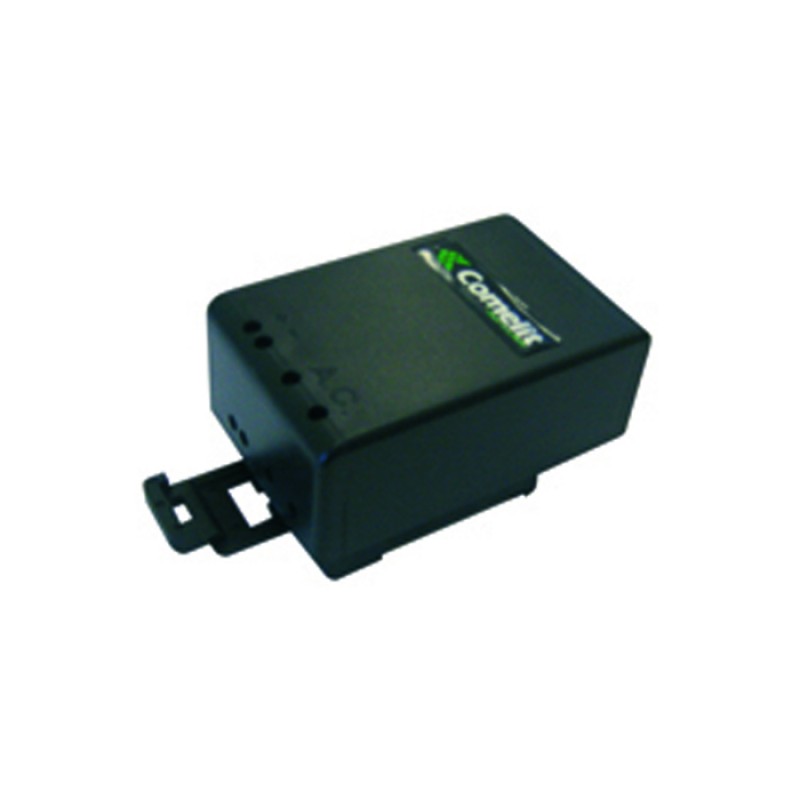

Power supply for DIN rail (3 modules), input from 110 to 240 VAC/50-60 Hz, output 12 VDC / 1.5 A.
Technical data 43015
- Type: DIN rail power supply
- Width: 3 DIN rail modules
- Input voltage: 110–240 VAC
- Input frequency: 50–60 Hz
- Output voltage: 12 VDC
- Output current: 1.5 A
- Connections: screw terminals
The product name mentions a 230 VAC input, but the manufacturer gives a full input voltage range of 110 to 240 VAC at 50–60 Hz.
Function and use 43015
The 43015 is a 12 VDC DIN rail power supply, listed by Comelit among its analogue video surveillance (CCTV) power supply units. The same transmission and accessories section includes 12 VDC units with a jack connector, rated 0.7 A, 1.33 A and 2.5 A. DIN rail fixing and screw terminals set it apart from those plug-in units.
Difference between 43015 and 43015A
Code 43015A is a Comelit DIN rail power supply with 230 VAC input and 12 VDC output at 2 A. The 1.5 A version delivers the same 12 VDC output voltage at a lower current.
