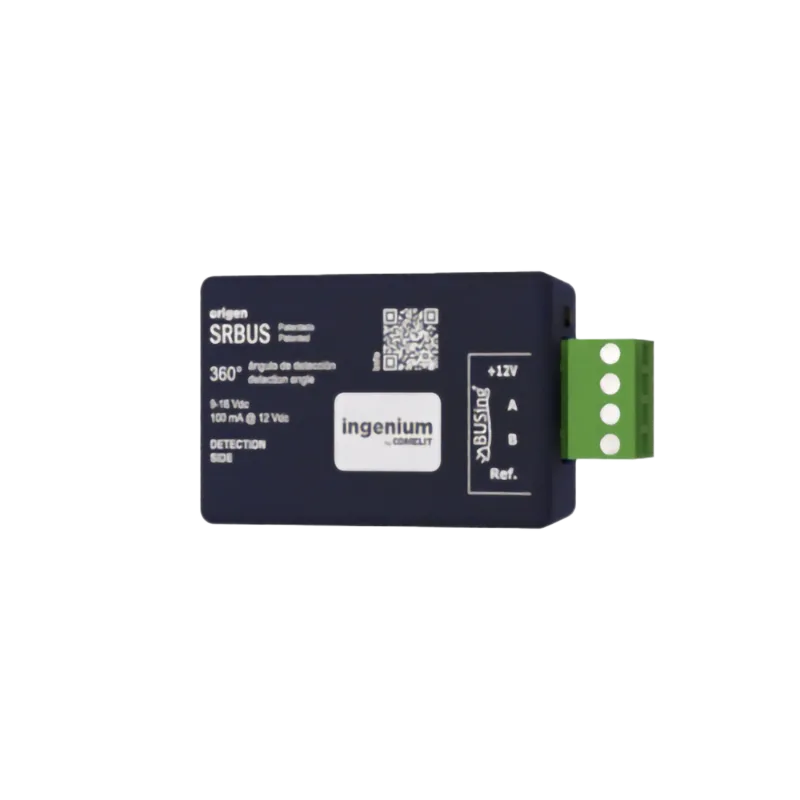

BUSing motion detector for concealed installation, detecting motion through walls and ceilings made of any non-metallic material. It has a BUSing® connection, allowing events during detection and after it ends to be set up and programmed via the SIDE software. It covers a maximum area of 12 x 6 m at a mounting height of 2.5 m.
Technical data ING-SRBUS
- Type: ORIGEN series motion detector for concealed installation
- Detects movement through walls and ceilings made of any non-metallic material
- Maximum coverage area: 12 x 6 m
- Mounting height: 2.5 m
- Connection: BUSing®
- Setup: via the SIDE software, with events programmed during detection and after it ends
The conventional ING-SR, with the same 12 x 6 m maximum coverage, is adjusted with two potentiometers (intensity and time, 0–17 minutes) and has a 10 A potential-free relay output. On the ING-SRBUS, setup and event programming are done through SIDE, over BUSing®.
Product code: ING-SRBUS. See also in the BUSING Sensors category: ORIGEN FLOODING SENSOR and ORIGEN 2-SENSOR MOTION DETECTOR.
