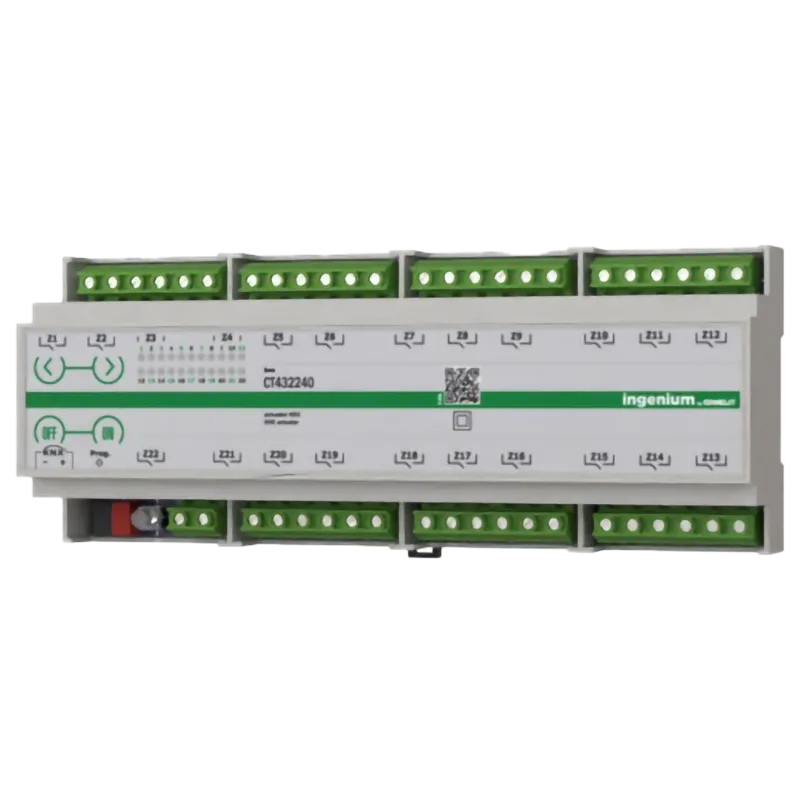

KNX binary actuator with 22 potential-free relay outputs, each with a breaking capacity of 16A at 230 VAC. Each output can operate independently or simultaneously in different modes, such as binary outputs, shutter control or fan coil, while the actuator also supports ALU arithmetic logic units and allows manual control of the relay outputs directly from the device.
Technical data CT432240
- Supply 29 V DC from the KNX BUS.
- DIN rail mounting, 12 modules wide.
- Output configurations: up to 22 on/off circuits, 11 blinds (2 outputs per motor, up and down), 22 thermovalves or 5 fan-coils.
- A contactor is recommended for higher-power loads.
- Manual operation with 4 capacitive buttons on the cover: two arrows move between the outputs and on/off buttons open or close the relay. 22 LEDs show the status of each output.
- Up to 8 arithmetic and logic units and up to 8 timers/counters, using internal or external variables.
- Last position memory after a power failure.
- KNX BUS terminal and screw terminal block for inputs and outputs.
- Operating temperature -10 to 55 °C, storage -30 to 60 °C.
- Standards: EN 50090-2-2, UNE-EN 61000-6-3:2007, UNE-EN 61000-6-1:2007 and UNE-EN 61010-1.
Product code: CT432240. See also in the KNX Relay Units category: KNX 4-INPUT MODULE – FLUSH-MOUNTED and KNX ACTUATOR 22 OUTPUTS 16A.
