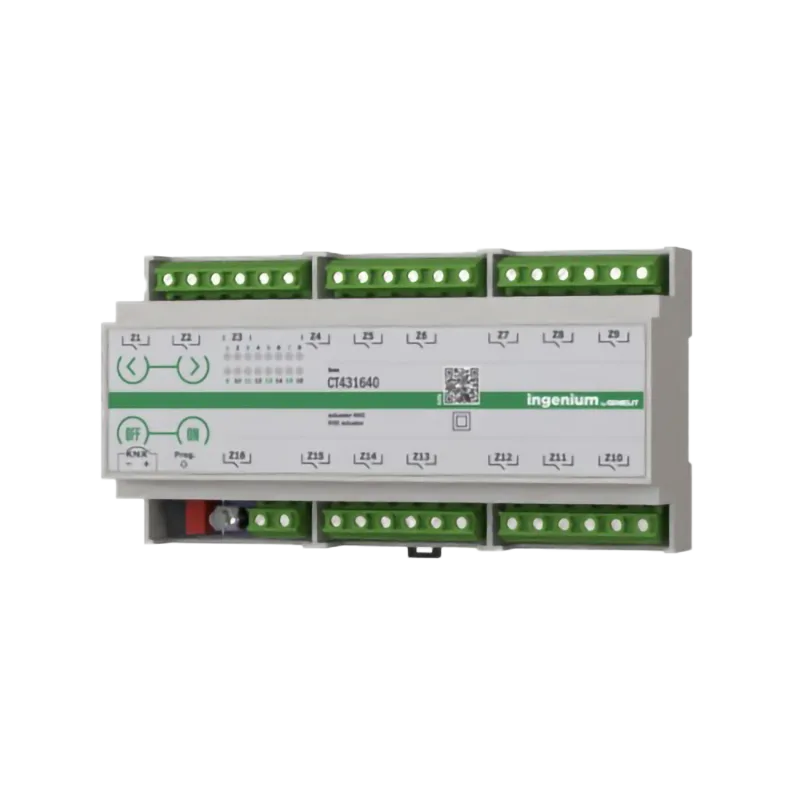

KNX binary actuator with 16 potential-free relay outputs, each with a breaking capacity of 16A at 230 VAC. Each output can operate independently or simultaneously in different modes, such as binary outputs, shutter control or fan coil, while the actuator also supports ALU arithmetic logic units and allows manual control of the relay outputs directly from the device.
Technical data CT431640
- 16 potential-free relay outputs, breaking capacity 16 A at 230 VAC per output. A contactor is recommended for larger loads.
- Configurations: 16 on/off circuits, 8 blinds with 2 outputs per motor, or 4 fan-coils.
- Manual section on the cover: 4 capacitive buttons to test and select outputs, and 16 LEDs showing which output is selected and its status.
- Up to 8 arithmetic and logic units and 8 timers/counters.
- Keeps the last position of the outputs after a power failure.
- Supply 29 V DC and consumption 10 mA from the KNX BUS.
- DIN rail, 9 modules.
- Operating temperature -10 to 55 °C, storage and transport -30 to 60 °C.
- Standards: EN 50090-2-2, UNE-EN 61000-6-3:2007, UNE-EN 61000-6-1:2007 and UNE-EN 61010-1.
