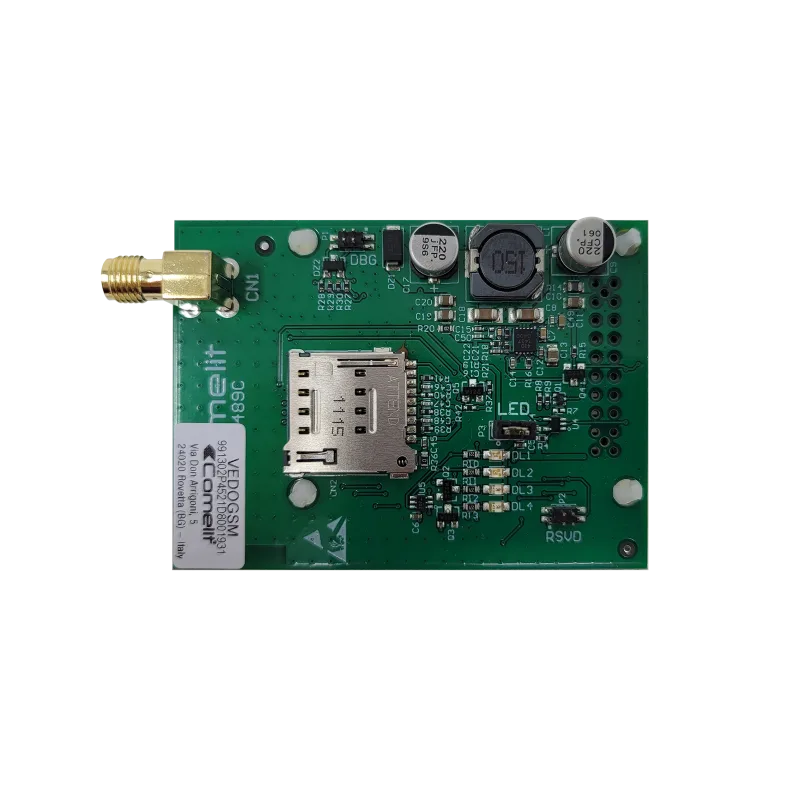

Plug-in GSM dialler expansion card for VEDO alarm control panels. It allows the transmission of phone calls, SMS, MMS and e-mail via the data network. In combination with the voice message card code VEDOVOICE, it allows remote management of the control panel via SMS and voice dialler.
Technical data VEDOGSM
- GSM850, EGSM900, DCS1800, PCS1900 bands with GSM/GPRS channel support (2G technology)
- Works as main or reserve telephone dialler
- Alarm, fault, sabotage and event notification with customisable SMS, control panel status query via SMS and prepaid SIM credit check
- Event transmission in Contact-ID and SIA (Level 1) format via GSM and over TCP-IP (SIA-DC-09), plus email with images or MMS
- Date and time updating
- Consumption 10 mA idle and 60 mA in communication, operating voltage 10 to 15 V
- Weight 23 g without antenna, 41 g with antenna
- Security grade 2 and environmental class II to EN 50131-1, SP4 transmission category
- Operating temperature -10 to +55 °C, and -10 to +40 °C with humidity up to 93% non-condensing
- Standards: EN 50131-1, EN 50136-1, EN 50136-2, EN 61000-6-3, immunity to EN 50130-4, Incert
Compatibility and installation VEDOGSM
The version with protocol number 991201 or higher, or 98xxxx, can only be used with VEDO control panels running firmware 2.13.0 or later, while a separate manual covers earlier versions. The card plugs into the MOD5 connector of the control panel board, takes a micro SIM and is enabled with the Safe Manager software. The antenna is placed at least 20 cm from the module and never on a metal surface.
