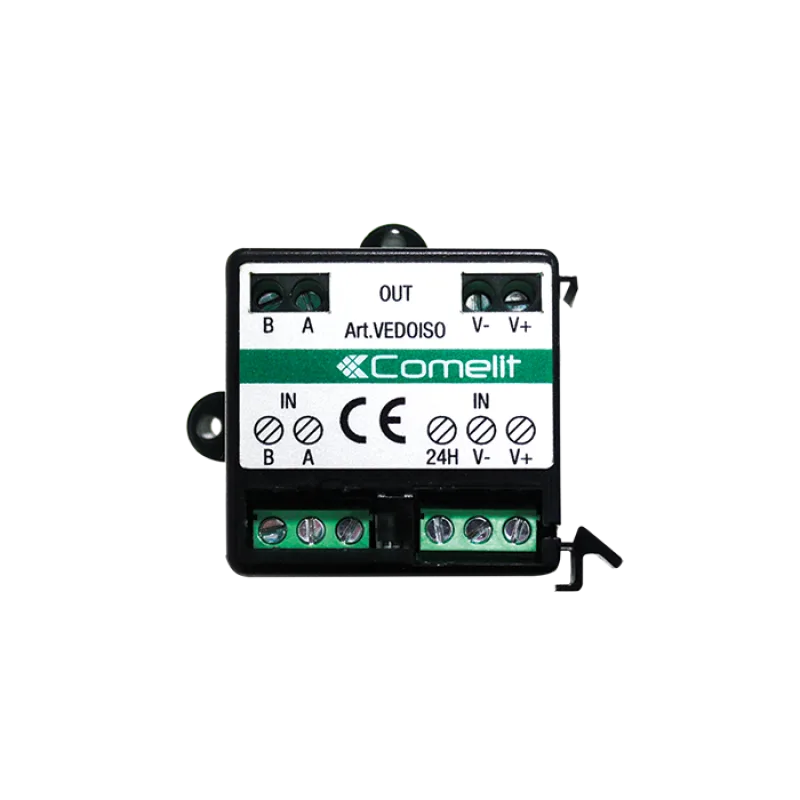

Isolator for VEDO control panels on the BUS. It protects against faults and sabotage.
Technical data VEDOISO
- Module type: isolator on the VEDO system bus
- RS485 bus connection, transmission speed 38400 bit/s
- Bus fault isolation and bus signal regeneration, with 1 regenerated bus output
- Power supply 10 to 15 Vdc
- Maximum absorption 40 mA, rated stand-by absorption 40 mA at 13.8 V
- Plastic housing, DIN rail mountable
- Dimensions (H x W x D): 56 x 53 x 19 mm
- Operating temperature -10 to 55 °C
- Regulations: EN50131-1, EN50131-3, Incert
The manufacturer provides firmware for the module, shared with code 30003105.
Standards VEDOISO
The VEDOISO is a bus isolator for VEDO control panels, referenced to EN50131-1, EN50131-3 and the Incert certification. EN 50131-1 sets the system requirements for intrusion and hold-up alarm systems. EN 50131-3 covers the control and indicating equipment of the system. Incert is a Belgian certification mark for security equipment.
Installation VEDOISO
The module is inserted in the RS485 bus and provides one regenerated bus output towards the next section. The 40 mA absorption at 13.8 V is added to the load calculation of the power supply.
Product code: VEDOISO. See also in the VEDO category: MICROPHONE GLASS BREAK SENSOR and IP COMMUNICATION CARD VEDO CONTROL PANELS.
