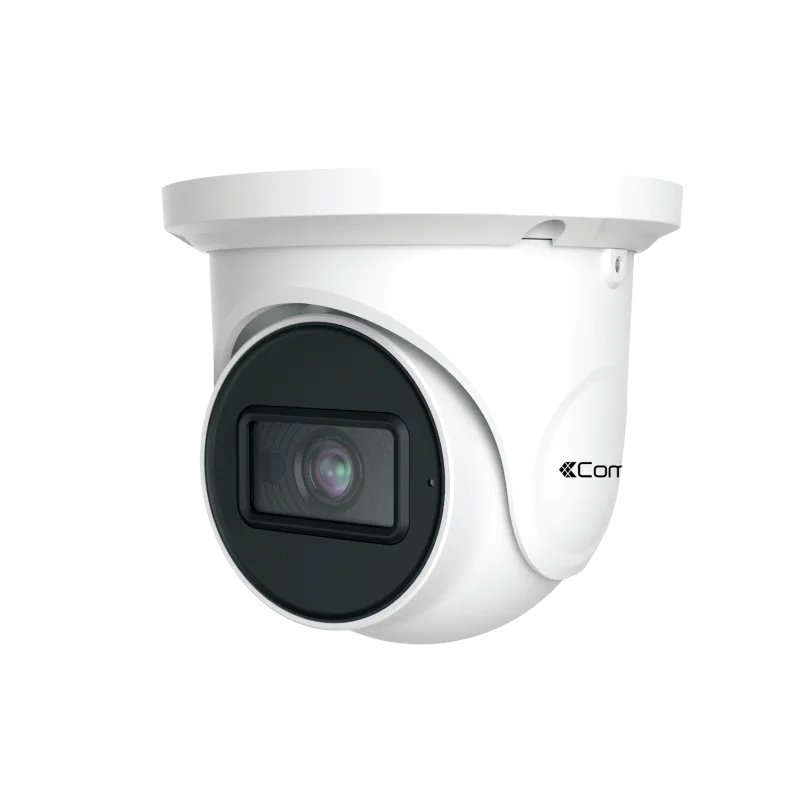

IP turret camera from the Advance series with a motorised 2.8-12 mm lens and 4MP resolution at 30 fps. It has IR LEDs with a range of 50 m (Smart IR) and is ONVIF compatible. The high frame rate (60 fps) works only with 32, 64 or 128-channel Advance NVRs.
Video analysis functions: scene change detection, abandoned or removed object detection, heat map, face detection and video tamper detection. The camera also detects line crossing and entry into or exit from an area, telling humans from vehicles. It counts humans or vehicles on a line and in an area.
The turret camera has WDR 120 dB, H.265+/H.265/H.264+/H.264/MJPEG compression, an SD card slot up to 256 GB and one audio input. The housing is waterproof IP67 die-cast aluminium, powered by 12 VDC or PoE IEEE802.3af. Matching mounts: JBA-BA, CMA-BA, WMA-BA, PMA-A and AMA-A.
Technical data IPTCAMA04ZC
- Advance series turret camera with a 2.8-12 mm motorised lens and 4MP resolution at 30 fps
- High frame rate mode: 2MP at 60 fps, only in combination with 32, 64 or 128-channel Advance NVRs
- Audio: one input, one output and a built-in microphone
- Alarm contacts: one input and one output
- ONVIF protocol with Profile S and Profile G support
- Browser management: IE, Google Chrome, Edge, Firefox and Safari
Additional video analytics IPTCAMA04ZC
- Metadata analysis
- Detection of parking where it is not allowed (no parking)
- Detection of prolonged presence in an area (loitering)
- Audio fault alert
Product code: IPTCAMA04ZC. See also in the IP ADVANCE category: IP TURRET CAMERA 4MP 2.8MM and IP PTZ CAMERA, 4MP 25X.
