Sensor accessory for measuring the consumption of one physical channel via the GW650300 device. The sensor allows connection without the need to cut or modify the wiring.
Technical data GW650060
- Type: current transformer, sensor accessory
- Current: 60 A
- Measurement: consumption of one physical channel
- Installation: coupling without cutting or modifying the wiring
Compatibility GW650060
- GW650300: KNX consumption meter for up to 3 channels, with consumption limits set in the programming and an alarm function when they are exceeded
Each GW650060 corresponds to one physical measuring channel of the GW650300.
Function and use GW650060

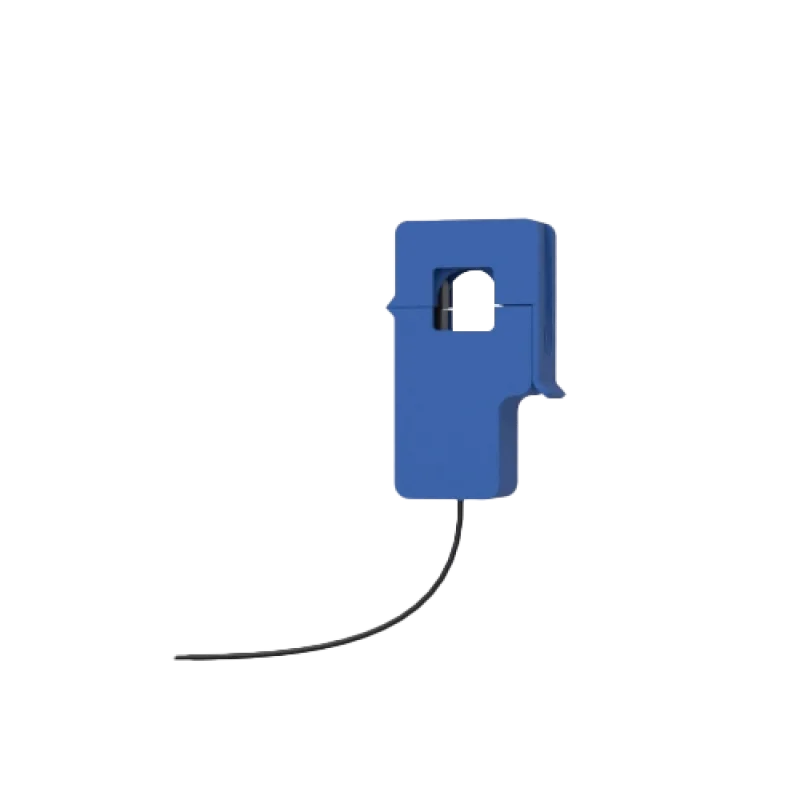

The GW650060 is a current clamp that measures cable current and delivers a 0 to 1 V output voltage. Rated input is 0 to 60 A, with ±1% accuracy and linearity of 0.2% or better. The turns ratio is 1:1800, the working voltage is 660 V and the working frequency is 50 Hz to 1 kHz. Dielectric strength is 3 kV at 50 Hz for 1 minute. The same range includes 20 A (GW650020), 30 A (GW650030), 50 A (GW650050) and 100 A (GW650100) versions.
Installation GW650060
The clamp is mounted suspended around the cable whose current is measured. Dimensions are 32 x 57 x 22 mm and weight is 55 g. Compliance covers EN 50090-2-2, UNE-EN 61000-6-3:2007, UNE-EN 61000-6-1:2007 and UNE-EN 61010-1.
