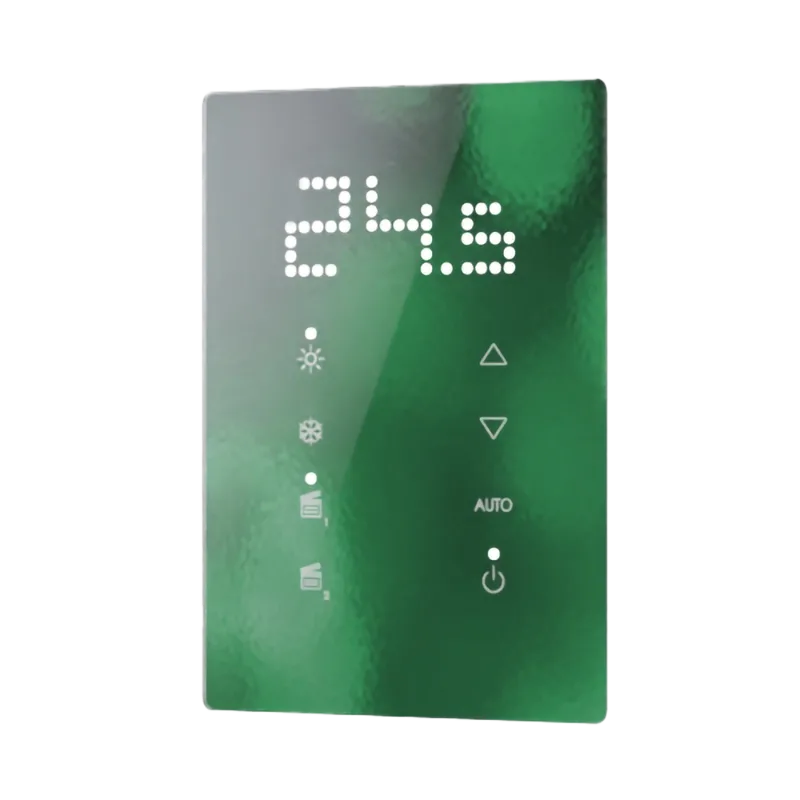

White BUSing® technology thermostat with LED indicators for controlling an independent air conditioning zone. It has eight fully configurable input areas and a built-in concealed PI controller for maximum comfort and energy savings. It includes a temperature and humidity sensor, allowing the dew point to be calculated. The front glass is fully customisable.
Technical data ING-CD-TLVB
- White back casing, Design version: the fixed front glass is printed with your own design
- Discretised PI controller and humidity sensor for dew point calculation
- Measures temperature from 0 °C to 51 °C
- Current 35 mA at 12 Vdc, supply range 9 to 16 Vdc
- Vertical dimensions 88 x 129 x 6 mm
- Standards: EN 50090-2-2, UNE-EN 61000-6-3:2007, UNE-EN 61000-6-1:2007, UNE-EN 61010-1
- Storage and transport: -30 °C to 60 °C
- BUS colour code: red +12 V, yellow A, green B, black reference
In mixed mode it works for cooling and heating at the same time, while in off mode it only reads the temperature.
Product code: ING-CD-TLVB. See also in the Multi-switches/Thermostats category: CUBIC-TLV ORIGEN VERT – DESIGN – BLACK and CUBIC-TLV+CO2 ORIGEN VERT.- DESIGN – WHITE.
