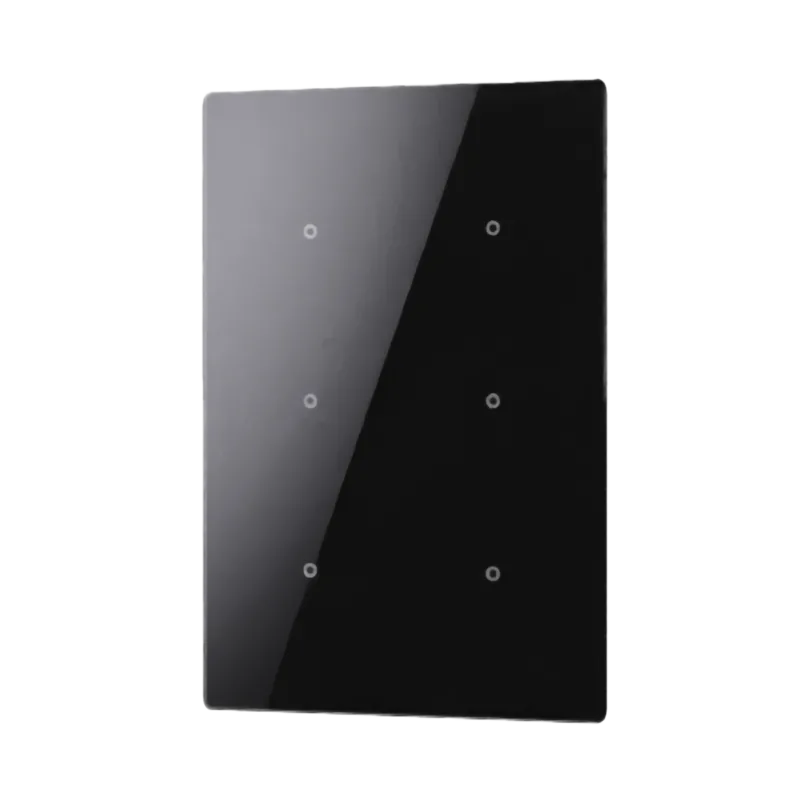

Vertical, black capacitive push button with BUSing® technology, with 6 independent, fully programmable touch areas. It features LED indicators for each touch area, as well as a built-in temperature sensor with a hidden PI controller for maximum comfort and energy saving. It supports On/off, PWM or continuous control for managing main and auxiliary cooling/heating systems.
Technical data ING-CB-V6N
- Basic version: black back casing, fixed glass with a print that cannot be changed
- Vertical shape, 88 x 129 x 6 mm
- 12 Vdc through the BUS, 20 mA consumption
- Fixing in a flush universal box or straight onto the wall
- Operating range: -10 °C to 55 °C
- Recommended BUS cable: flexible shielded 4 x 0.22 mm² or 2 x 0.5 mm² + 2 x 0.22 mm²
- BUS lines routed separately from the 230 V cables
The 6 touch areas control 6 On/Off circuits, 3 blinds or 1 fan coil.
Product code: ING-CB-V6N. See also in the Multi-switches/Thermostats category: CUBIC ORIGEN VERT – 6 CH – DESIGN – WHITE and CUBIC ORIGEN VERT – 6 CH – BASIC – WHITE.
