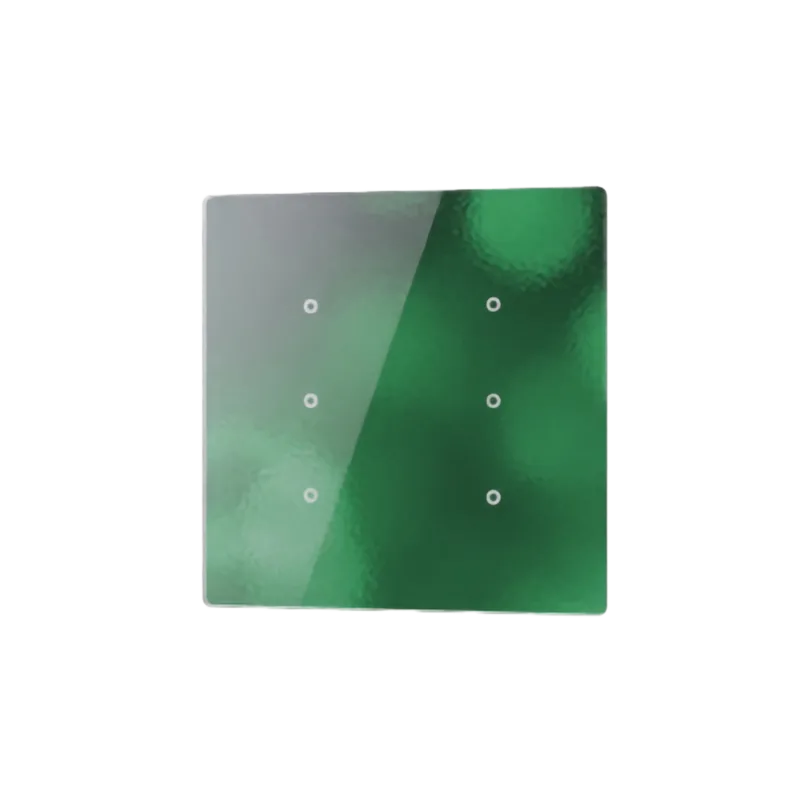

Square, customisable white capacitive push button with BUSing® technology, with 6 independent, fully programmable touch areas. It features an LED indicator for each touch area, as well as a built-in temperature sensor with a hidden PI controller for maximum comfort and energy saving. It supports On/off, PWM or continuous control for managing main and auxiliary cooling/heating systems.
Technical data ING-CD-SQ6B
- White square Design panel, size 88 x 88 x 6 mm
- Current from the BUS: 20 mA at 12 Vdc
- BUS connection with T connector and crimp terminals
- CTI 175, class L, overvoltage category II, flammability category D
- Standards: EN 50090-2-2, UNE-EN 61000-6-3:2007, UNE-EN 61000-6-1:2007, UNE-EN 61010-1
- BUS cable: flexible shielded 4 x 0.22 mm² or 2 x 0.5 mm² + 2 x 0.22 mm²
Each of the 6 touch areas is one input: in total 6 On/Off circuits, 3 blinds or 1 fan coil.
Product code: ING-CD-SQ6B. See also in the Multi-switches/Thermostats category: CUBIC ORIGEN SQUARE – 6 CH – DESIGN – BLACK and CUBIC ORIGEN SQUARE – 6 CH – BASIC – BLACK.
