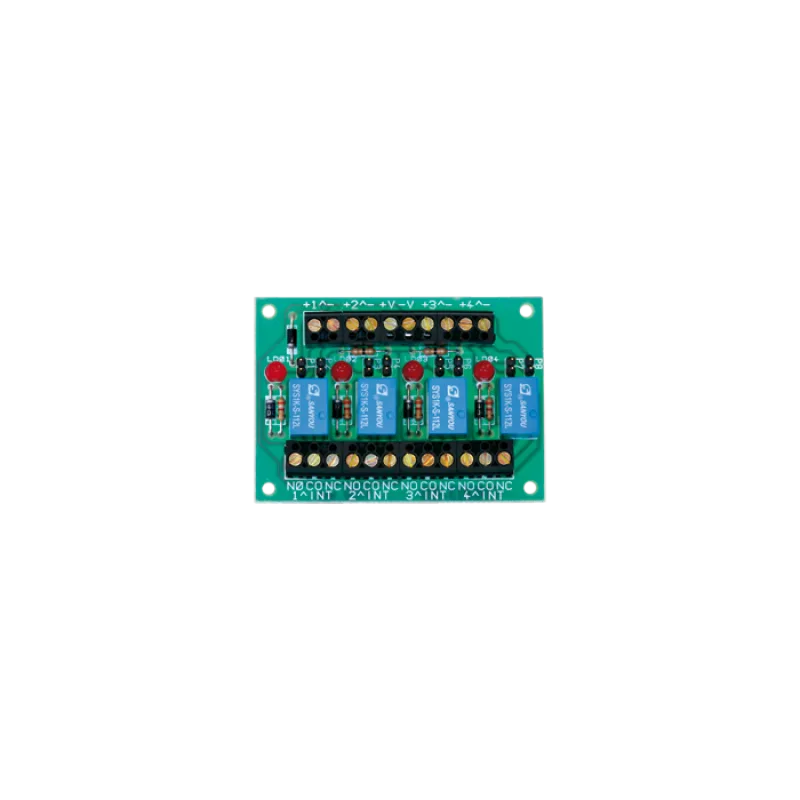

Card with 4 relays powered at 12 VDC, consumption 23mA, free exchange outputs with independent selection as NC/NO, maximum contact capacity 1A. Dimensions: 77x55x20 mm.
Technical data 30002009
- Low-consumption four-relay card, intruder alarm accessory
- Supply voltage 12 V, maximum current absorption 23 mA
- Four free-exchange outputs, each independently selectable as NC or NO
- Maximum contacts capacity 1 A
- Width 77 mm, height 55 mm, depth 20 mm
- Weight 69 g, CE marking
Difference from card 30002008
The 30002009 provides four relays on a 77 x 55 mm board, while the 30002008 has a single relay on a 40 x 31 mm board. Contact capacity here is 1 A, against 3 A on the single-relay card, with the same 12 V supply and the same 23 mA maximum absorption.
